Same model may have multiple batches, images only for reference.

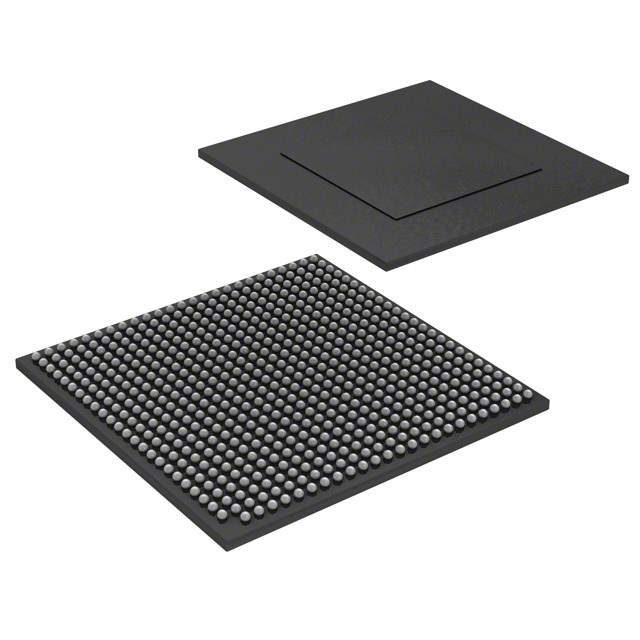

MCIMX6D6AVT08ACR Real Image
Same model may have multiple batches, images only for reference.

MCIMX6D6AVT08ACR

Part No MCIMX6D6AVT08ACR
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microprocessors
Description IC MPU I.MX6D 852MHZ 624FCBGA
Datasheet
MCIMX6D6AVT08ACR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Core Processor ARM Cortex-A9
Number of Cores/Bus Width 2 Core, 32-Bit
Speed(Frequency) 852MHZ
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR2, LVDDR3, DDR3
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD
Ethernet 10/100/1000 Mbps (1)
SATA SATA 3Gbps (1)
USB USB 2.0 + PHY (4)
Voltage - I/O 1.8V, 2.5V, 2.8V, 3.3V
Temperature Range - Operating -40°C to 125°C (TJ)
Security Features ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Case / Package 624-FCBGA (21x21)
Additional Interfaces CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Win Source Part Number 137654-MCIMX6D6AVT08ACR
Ultra Librarian 3D Model Ultra Librarian MCIMX6D6AVT08ACR CAD Model

Description

The NXP 137654-MCIMX6D6AVT08ACR is an ARM Cortex-A9 core processor with 32-bit bus width and 2 cores.

  • Core Processor: ARM Cortex-A9
  • Bus Width: 32-bit
  • Number of Cores: 2 cores
  • Multimedia: Yes
  • Co-processors/DSPs: NEON SIMD
  • RAM Controllers: LPDDR2, LVDDR3, and DDR3
  • Display and Interface Controllers: Keypad and LCD
  • Ethernet: 10/100/1000 Mbps (1)
  • USB 2.0 + PHY: (4)
  • Voltage Range: 1.8V, 2.5V, 2.8V, and 3.3V
  • Security: ARM TZ, boot security, cryptography, RTIC, secure fusebox, JTAG, memory, RTC, and tamper detection
  • Package: 624-FCBGA (21x21) case
  • Speed (frequency): 852MHz
  • Lifecycle Status: Not for new designs
