USB4125-GF-A GCT – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

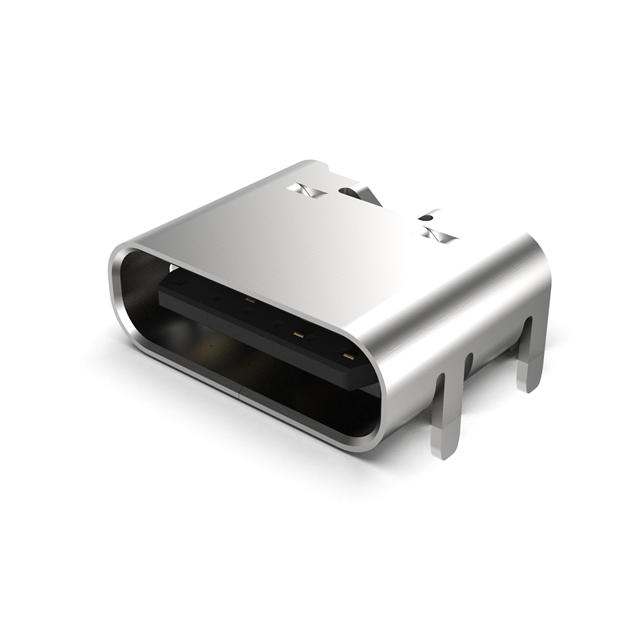

USB4125-GF-A

Part No USB4125-GF-A
Manufacturer GCT
Catalog USB, DVI, HDMI Connectors —USB, DVI, HDMI Connector Assemblies
Description CONN RCPT TYPE C 6P SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsUSB, DVI, HDMI ConnectorsUSB, DVI, HDMI Connector Assemblies
Manufacturer GCT
Series USB4125
Part Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24 (6+18 Dummy)
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Power Only, No Data; Solder Retention Tab
Operating Temperature -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 3A
Voltage - Rated 48VDC
Mating Cycles 20000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number USB4125
Ultra Librarian 3D Model Ultra Librarian USB4125-GF-A CAD Model
