Same model may have multiple batches, images only for reference.

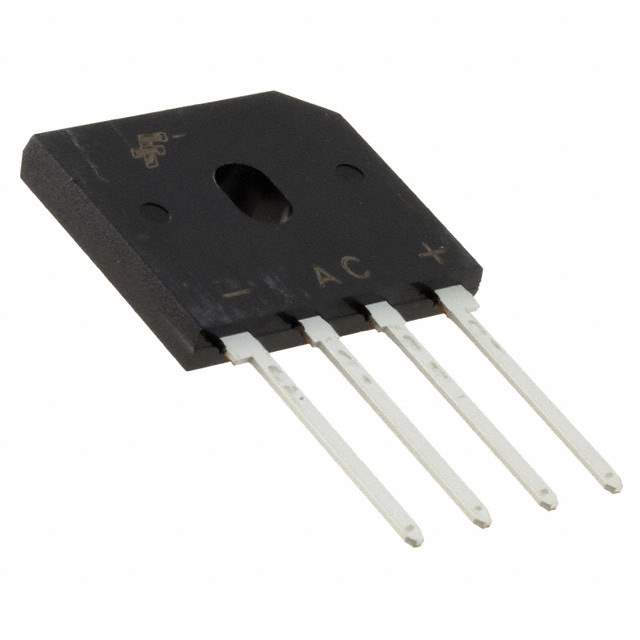

GBU6A Real Image
Same model may have multiple batches, images only for reference.

GBU6A

Part No GBU6A
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER(VOLTAGE - 100 Volts CURRENT - 6.0 Amperes) | BRIDGE RECT 1PHASE 50V 6A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 50V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 6A
Current - Reverse Leakage at Vr 5μA at 50V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBU
Supplier Device Package GBU
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1177031-GBU6A
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBU6A CAD Model

Description

The GeneSiC Semiconductor GBU6A is a single-phase bridge rectifier diode that is designed to handle average rectified currents of up to 6A.

  • Package: 4-SIP GBU package
  • Mounting: Through-hole mounting
  • Peak Reverse Voltage: 50V
  • Maximum Forward Voltage Drop: 1.1V @ 6A
  • Temperature Range: -55°C to +150°C
  • Application: Ideal for use in power supplies, motor drives, and other high-current applications
