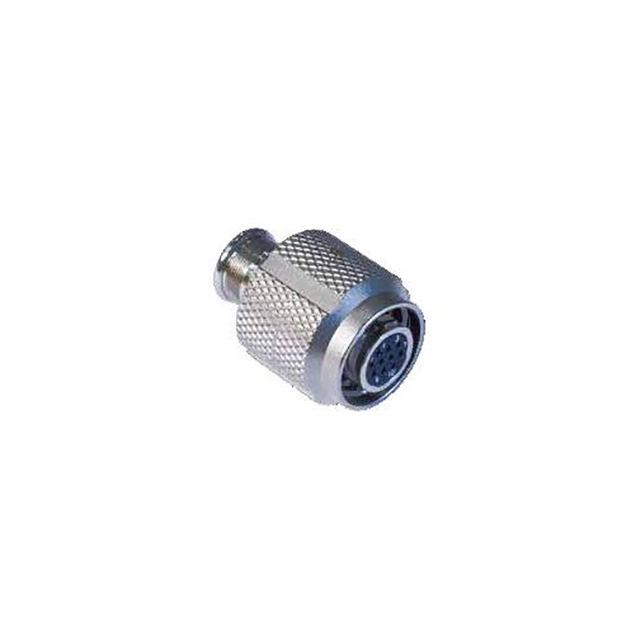

Same model may have multiple batches, images only for reference.
804-001-06ZNU12-37PA Glenair, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

804-001-06ZNU12-37PA

Part No 804-001-06ZNU12-37PA
Manufacturer Glenair, Inc.
Catalog Circular Connectors - Assemblies
Description CIRCULAR MIL SPEC CONNECTOR 37P
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Plug, Male Pins
Number of Positions 37
Shell Size - Insert 12-37
Mounting Type Free Hanging (In-Line)
Termination Crimp
Fastening Type Push-Pull
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Black Zinc Nickel
Contact Finish - Mating Gold
Color Black
Ingress Protection Environment Sealed
Shielding Shielded
Current Rating (Amps) 5A
Temperature Range - Operating -65°C ~ 175°C
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1615902-804-001-06ZNU12-37PA
Ultra Librarian 3D Model Ultra Librarian 804-001-06ZNU12-37PA CAD Model

Description

N
