Same model may have multiple batches, images only for reference.

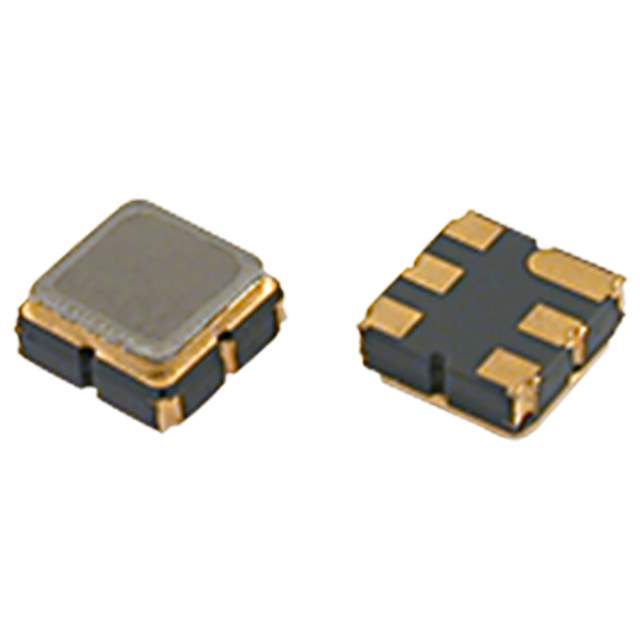

MA08506 Real Image
Same model may have multiple batches, images only for reference.

MA08506

Part No MA08506
Manufacturer Golledge Electronics Ltd
Catalog SAW Filters
Description 1228.0 MHz GSRF TA0490A SAW Filt / 1.228GHz Frequency Wireless RF SAW Filter (Surface Acoustic Wave) 3.9dB 20MHz Bandwidth 6-SMD, No Lead
Datasheet
MA08506 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr Golledge Electronics Ltd
Series GSRF
Package Bulk
Frequency - Center 1.228GHz
Bandwidth 20MHz
Insertion Loss 3.9dB
Ratings -
Applications Wireless
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Standard Package 1 pcs
Win Source Part Number 1383582-MA08506
Ultra Librarian 3D Model Ultra Librarian MA08506 CAD Model

Description

The MA08506 is a SAW filter designed for wireless applications. It belongs to the GSRF series by Golledge Electronics Ltd.

  • Center Frequency: 1.228GHz
  • Bandwidth: 20MHz
  • Insertion Loss: 3.9dB
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Mounting Type: Surface Mount
  • Package: 6-SMD, no lead
  • REACH: Unaffected
