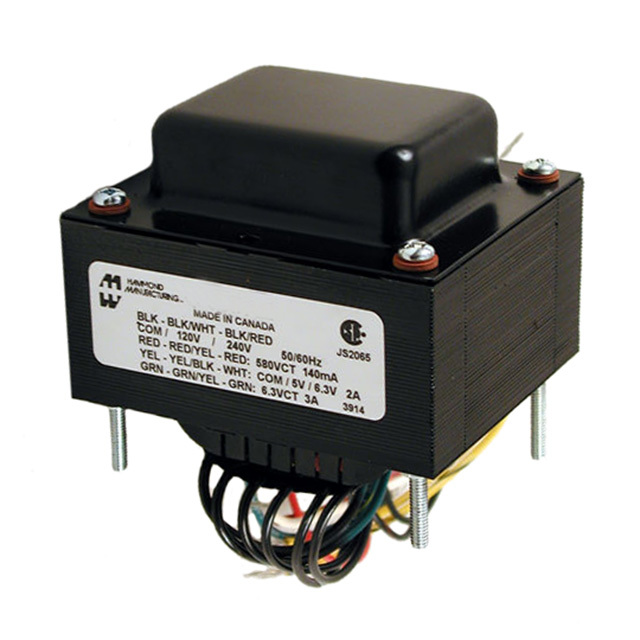

266S24

Part No 266S24
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 240VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 117V, 234V
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Current - Output (Max) Parallel 20A, Series 10A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 240VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 87.38mm L x 91.44mm W
Height - Seated (Max) 109.22mm
Voltage - Isolation 2000Vrms
Weight 8.6 lbs (3.9 kg)
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1545943-266S24
Ultra Librarian 3D Model Ultra Librarian 266S24 CAD Model
