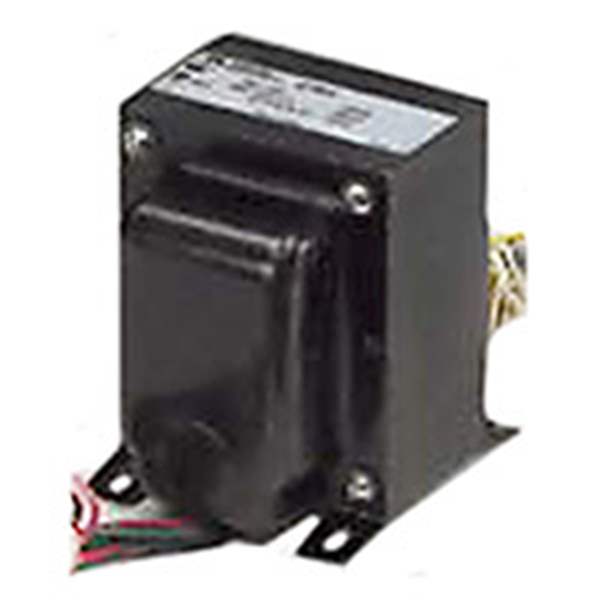

269BX

Part No 269BX
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 38VA CHAS MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 300V, 6.3V
Current - Output (Max) 86mA, 2A
Primary Winding(s) Single
Secondary Winding(s) Dual
Center Tap Yes
Power - Max 38VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 55.63mm L x 63.50mm W
Height - Seated (Max) 66.80mm
Voltage - Isolation 2000Vrms
Weight 1.6 lbs (725.7 g)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545975-269BX
Ultra Librarian 3D Model Ultra Librarian 269BX CAD Model
