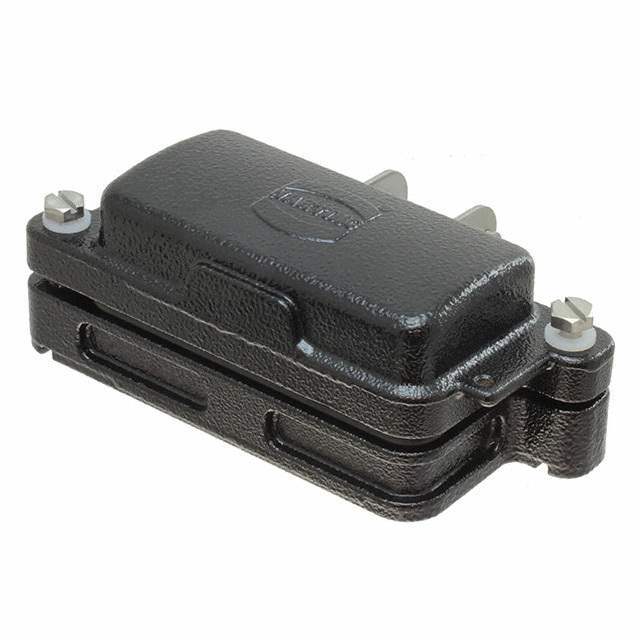

09400100317

Part No 09400100317
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN BASE BOTTOM ENTRY SZ10B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206669-09400100317
Manufacturer HARTING
Category Connectors, Interconnects -Heavy Duty Connectors- Heavy Duty Connector Housings, Hoods, Bases
Series Han® HPR
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size / Dimension 5.709" L x 2.283" W x 1.138" H (145.00mm x 58.00mm x 28.90mm)
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Ultra Librarian 3D Model Ultra Librarian 09400100317 CAD Model

Description

Base - Panel Mount Connector Bottom Entry 10B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
