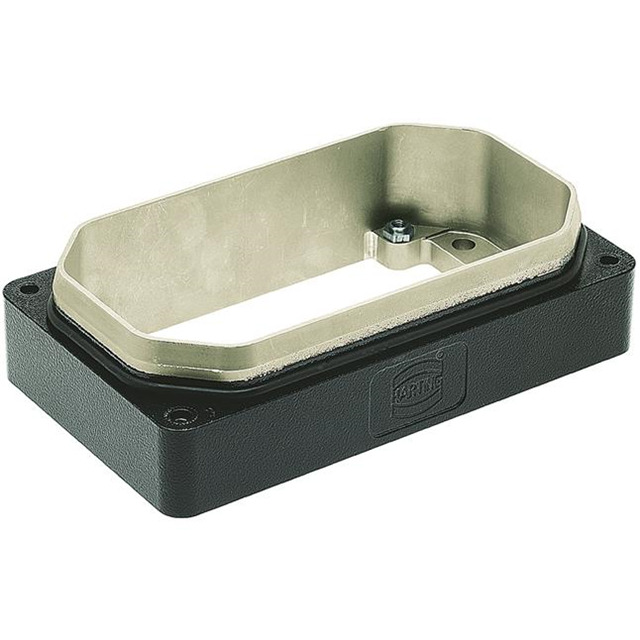

09400480311

Part No 09400480311
Manufacturer HARTING
Catalog Heavy Duty Connectors - Housings, Hoods, Bases
Description CONN BASE BOTTOM ENTRY SZ48B
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Base - Panel Mount
Style Bottom Entry
Size 48B
Lock Location Screw Locks on Hood
Size / Dimension 7.559" L x 4.409" W x 2.047" H (192.00mm x 112.00mm x 52.00mm)
Housing Color Black
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1633511-09400480311
Ultra Librarian 3D Model Ultra Librarian 09400480311 CAD Model
