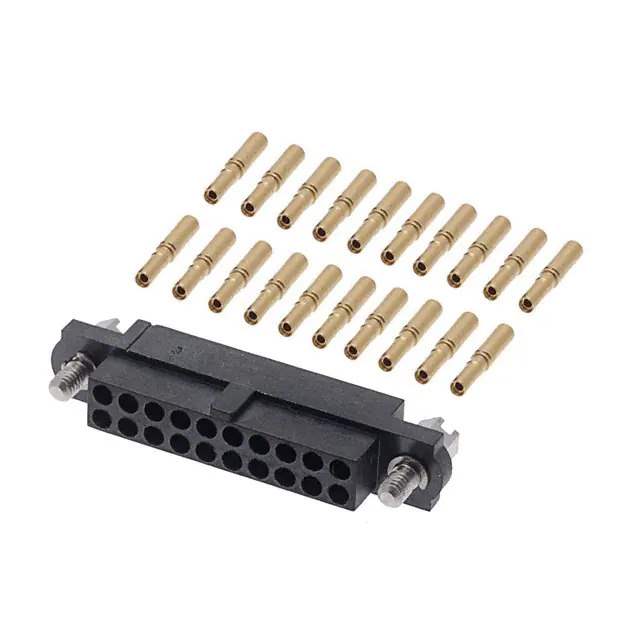

M80-4612005 Real Image
Same model may have multiple batches, images only for reference.

M80-4612005

Part No M80-4612005
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS CRIMP 24-28AWG / 20 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
Datasheet
M80-4612005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr Harwin Inc.
Series Datamate J-Tek
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Cable Termination Crimp
Wire Type Discrete
Wire Gauge 24-28 AWG
Features Jackscrews
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Color Black
Base Product Number M80-461
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 924980-M80-4612005
Ultra Librarian 3D Model Ultra Librarian M80-4612005 CAD Model

Description

The M80-4612005 from Harwin Inc. is a rectangular connector from the Datamate J-Tek series.

  • Series: Datamate J-Tek
  • Positions: 20
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Feature: Jackscrews
  • Type: Receptacle
  • Contact Gender: Female Socket
  • Mounting: Free hanging (in-line)
  • Contact Finish: Gold
  • Wire Gauge: 24-28 AWG
  • Termination: Crimp
  • ECCN: Complies with ECCN regulations
  • REACH: Unaffected
