Same model may have multiple batches, images only for reference.

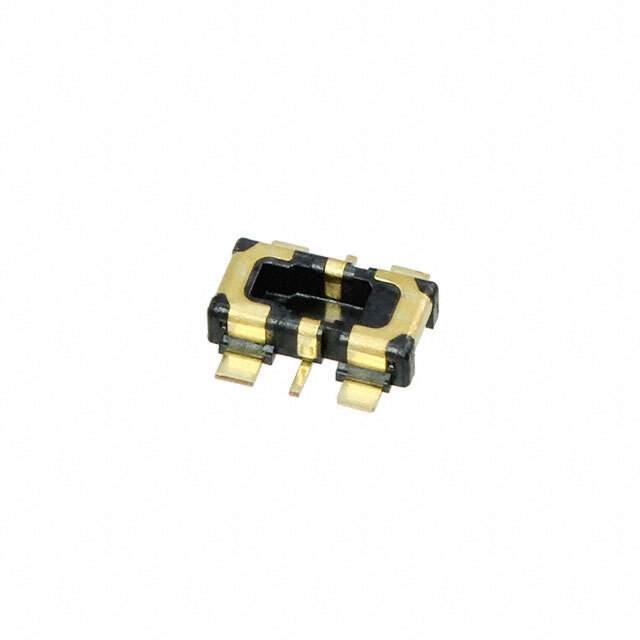

BM22L-4P-V(51) Real Image
Same model may have multiple batches, images only for reference.

BM22L-4P-V(51)

Part No BM22L-4P-V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Number of Positions 4 (2 + 2 Power)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Style SMD
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.030" (0.75mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 2.00μin (0.051μm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 50V
Mated Stacking Heights 0.9mm
Contact Finish Thickness - Post Flash
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809599-BM22L-4P-V(51)
Ultra Librarian 3D Model Ultra Librarian BM22L-4P-V(51) CAD Model

Description

The Hirose Electric BM22L series is a 4 (2 + 2 power) position SMD header connector with an outer shroud contact. The manufacturer is Hirose Electric.

  • Positions: 4 (2 + 2 power)
  • Mounting Type: SMD
  • Fastening Type: Friction Lock
  • Voltage Rating: 50V
  • Current Rating: Not Specified
  • Series: BM22L
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 10,000
  • MSL Level: 1 (unlimited)
  • Packaging: Reel
