Same model may have multiple batches, images only for reference.

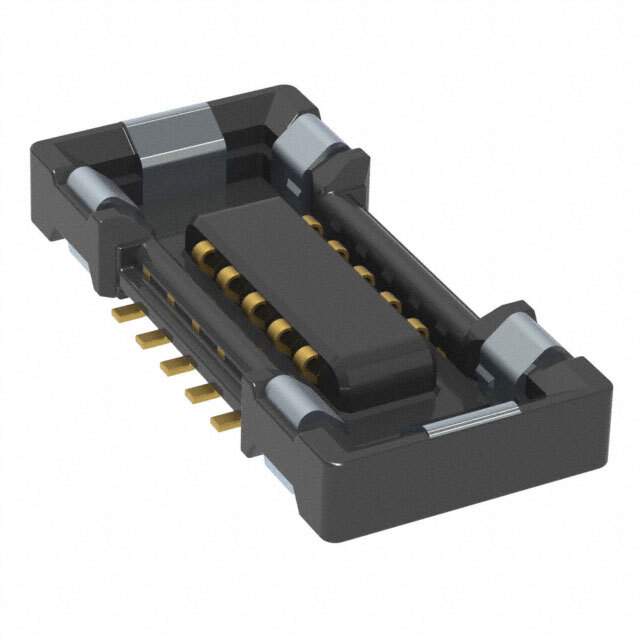

BM23FR0.6-10DS-0.35V(895) Real Image
Same model may have multiple batches, images only for reference.

BM23FR0.6-10DS-0.35V(895)

Part No BM23FR0.6-10DS-0.35V(895)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 10POS SMD GOLD / 10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
BM23FR0.6-10DS-0.35V(895) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 10
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.024" (0.61mm)
Base Product Number BM23FR0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125627CT,BM23FR0.6-10DS-0.35V(895)-ND,H125627DKR,H125627TR,480-0258-0-95
Standard Package 1,000
Win Source Part Number 1049465-BM23FR0.6-10DS-0.35V(895)
Ultra Librarian 3D Model Ultra Librarian BM23FR0.6-10DS-0.35V(895) CAD Model

Description

The Hirose Electric Co Ltd BM23FR0.6-10DS-0.35V(895) connector is a high-quality product with a number of useful features.

  • Pitch: 0.014" (0.35mm)
  • Features: Solder Retention
  • Connector Type: Receptacle, Center Strip Contacts
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.97µin (0.050µm)
  • Mounting: SMD (SMT) Technology
  • Height Above Board: 0.024" (0.61mm)
  • Standard Package: 1,000
  • Alternative Parts: H125627CT, BM23FR0.6-10DS-0.35V(895)-ND, H125627DKR, H125627TR, and 480-0258-0-95
