Same model may have multiple batches, images only for reference.

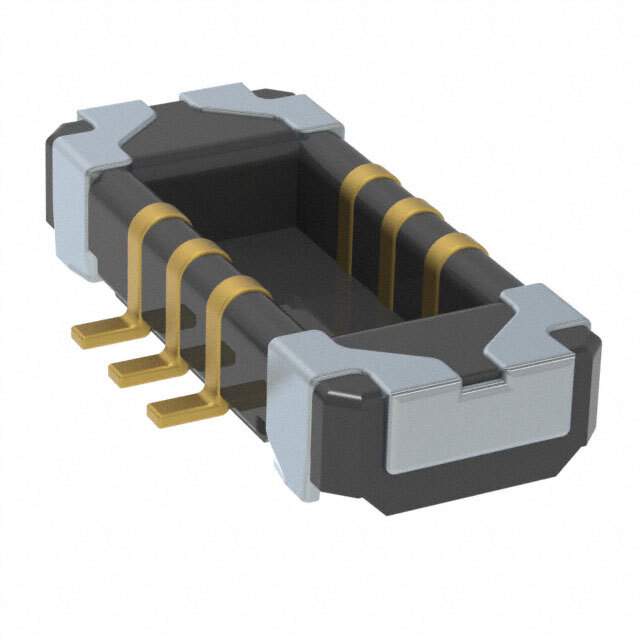

BM23FR0.6-6DP-0.35V(51) Real Image
Same model may have multiple batches, images only for reference.

BM23FR0.6-6DP-0.35V(51)

Part No BM23FR0.6-6DP-0.35V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 6POS SMD GOLD / 6 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM23FR0.6-6DP-0.35V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel (TR)
Connector Type Header, Outer Shroud Contacts
Number of Positions 6
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.020" (0.50mm)
Base Product Number BM23FR0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 480-0286-0-51
Standard Package 10,000
Win Source Part Number 1120434-BM23FR0.6-6DP-0.35V(51)
Ultra Librarian 3D Model Ultra Librarian BM23FR0.6-6DP-0.35V(51) CAD Model

Description

The Hirose Electric Co Ltd electronic component, with a Win Source Part Number of 1120434-BM23FR0.6-6DP-0.35V(51), is a rectangular connector-array, edge type, mezzanine (board to board) under the Connectors, Interconnects category.

  • Series: BM23
  • Positions: 6
  • Pitch: 0.014" (0.35mm)
  • Solder Retention: Yes
  • Contact Type: Outer Shroud Contact Header
  • Contact Finish: Gold with a thickness of 1.97µin (0.050µm)
  • Package: 10,000
  • Height Above Board: 0.020" (0.50mm)
