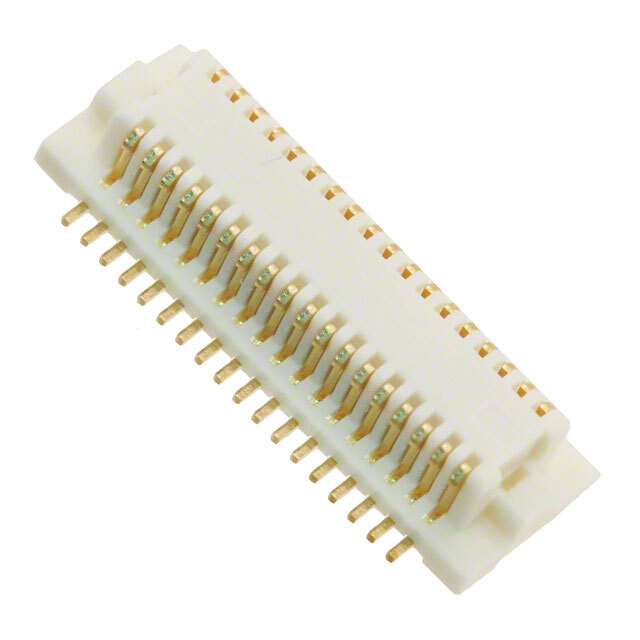

DF12A-36DS-0.5V(81) Hirose Electric Co Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DF12A-36DS-0.5V(81)

Part No DF12A-36DS-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Description CONN RCPT 36POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 36
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3.5mm, 4mm, 5mm
Height Above Board 0.106\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1614015-DF12A-36DS-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12A-36DS-0.5V(81) CAD Model
