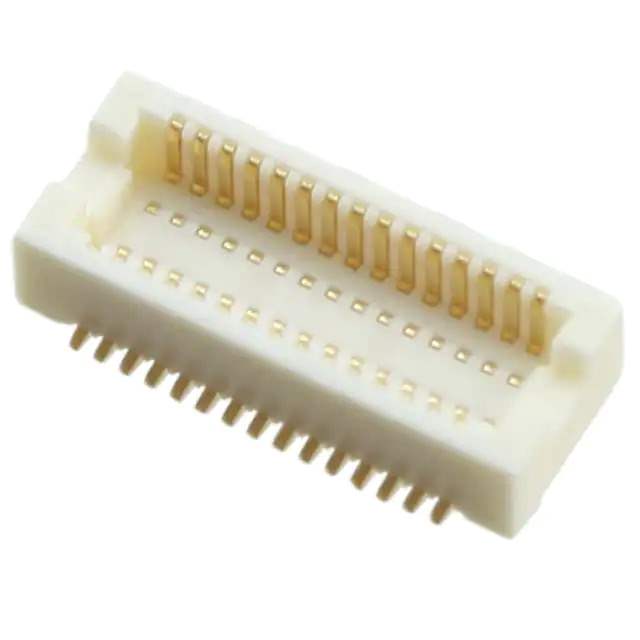

Same model may have multiple batches, images only for reference.

DF12E(3.5)-30DP-0.5V(81)

Name: DF12E(3.5)-30DP-0.5V(81)
Brand: Hirose Electric Co Ltd
SKU: 846325
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF12E(3.5)-30DP-0.5V(81)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	DF12
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Mated Stacking Heights	3.5mm
Height Above Board	0.110" (2.80mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	846325-DF12E(3.5)-30DP-0.5V(81)
Ultra Librarian 3D Model	Ultra Librarian DF12E(3.5)-30DP-0.5V(81) CAD Model

Alternative Products

Description

The DF12E(3.5)-30DP-0.5V(81) is an obsolete rectangular connector array from Hirose Electric Co Ltd.

Connector Type: Mezzanine
Contact Type: Header, Outer Shroud
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Mounting Type: Surface Mount
Height Above Board: 0.110" (2.80mm)
Contact Finish: Gold
Package: Tape & reel
Standard Package Quantity: 1,000 pieces
Status: Obsolete
