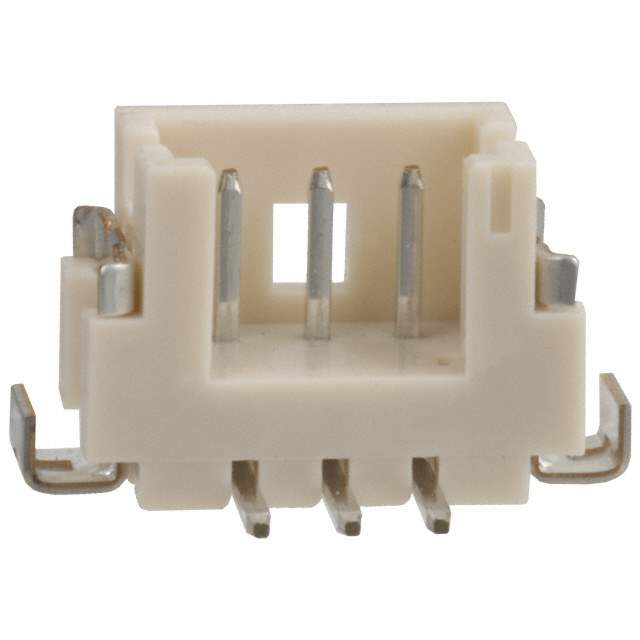

Same model may have multiple batches, images only for reference.

DF13C-3P-1.25V(20)

Name: DF13C-3P-1.25V(20)
Brand: Hirose Electric Co Ltd
SKU: 1338122
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13C-3P-1.25V(20)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 1.25MM / Connector Header Surface Mount 3 position 0.049" (1.25mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.189" (4.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Mated Stacking Heights	5.8mm
Standard Package	57
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338122-DF13C-3P-1.25V(20)
Ultra Librarian 3D Model	Ultra Librarian DF13C-3P-1.25V(20) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF13 series male pin header is a connector with 3 positions loaded on a single row.

Manufacturer: Hirose Electric Co Ltd
Series: DF13
Connector Gender: Male
Number of Positions: 3
Number of Rows: 1
Termination: Solder
Fastening Type: Detent Lock
Mounting Type: Surface Mount
Mating Pitch: 0.049" (1.25mm)
Contact Finish: Tin
Insulation Material: Polyamide (PA) , Nylon
Shrouding: 3 Walls
Insulation Color: Beige
Insulation Height: 0.189" (4.80mm)
Operating Temperature: -35°C ~ 85°C
Packaging: Tube
Standard Package: 57
