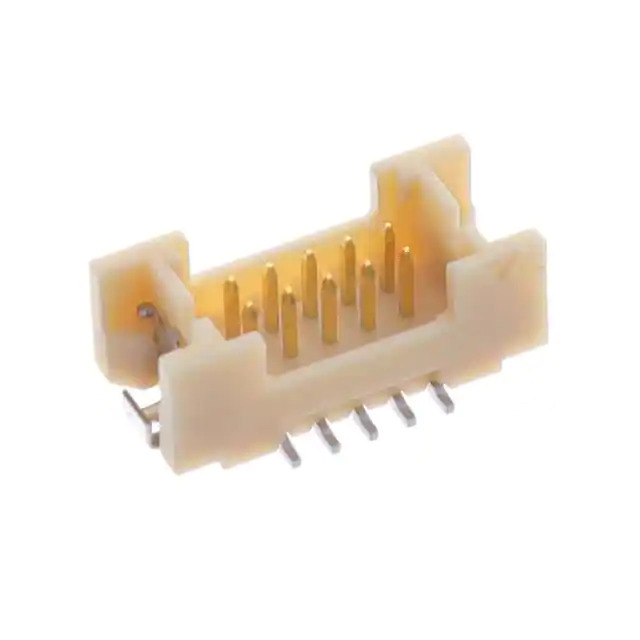

DF13EA-10DP-1.25V(52) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF13EA-10DP-1.25V(52)

Part No DF13EA-10DP-1.25V(52)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 1.25MM / Connector Header Surface Mount 10 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF13
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 150VAC/DC
Mated Stacking Heights -
Contact Finish Thickness - Post 8.00µin (0.203µm)
Applications -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362599-DF13EA-10DP-1.25V(52)
Ultra Librarian 3D Model Ultra Librarian DF13EA-10DP-1.25V(52) CAD Model

Description

The DF13EA-10DP-1.25V(52) is a header connector from Hirose Electric Co Ltd's DF13 series.

  • Mounting Type: Surface Mount
  • Pitch: 0.049" (1.25mm)
  • Positions: 10
  • Rows: 2
  • Shroud: 4 Walls
  • Current Rating: 1A per contact
  • Temperature Range: -35°C to 85°C
  • Packaging: Tape and Reel
  • Status: Active
  • Features: Solder Retention
  • Mating Contact Plating: Gold, 8.00µin (0.203µm)
  • Insulation Material: Polyamide (PA)
  • Insulation Color: Beige
  • Voltage Rating: 150VAC/DC
