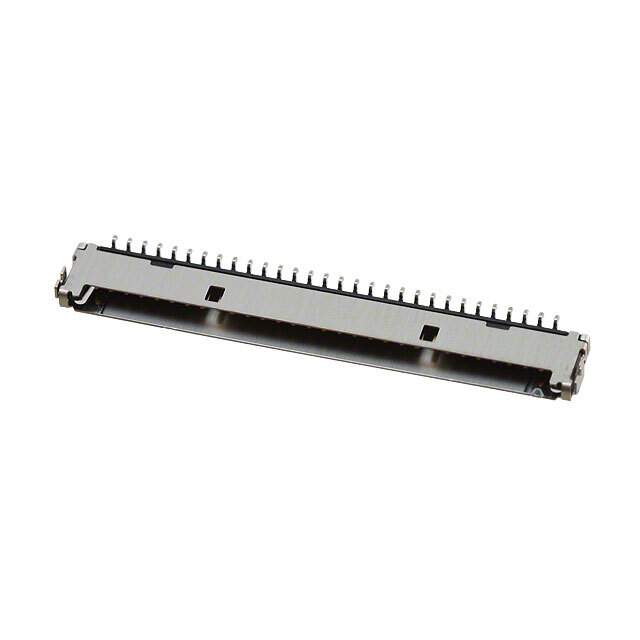

Same model may have multiple batches, images only for reference.

DF19G-30P-1H(54)

Name: DF19G-30P-1H(54)
Brand: Hirose Electric Co Ltd
SKU: 868449
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF19G-30P-1H(54)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 30POS 1MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	868449-DF19G-30P-1H(54)
Supply and Demand Status	Limited
Popularity	Medium
Quantity per package	1000
Other Part Number	685-0015-7-54, DF19G30P1H54, H11683TR, *DF19G-30P-1H(54), H11683CT, H11683DKR
HTSUS	8536.69.4040
ECCN	EAR99
MSL Level	1 (Unlimited)
Mounting	Surface Mount, Right Angle
Operating Temperature Range	-35°C ~ 85°C
Package	Reel - TR
Series	DF19
Manufacturer	Hirose Electric Co Ltd
Features	Connector Header Surface Mount, Right Angle 30 position 0.039" (1.00mm)
Categories	Connectors
Ultra Librarian 3D Model	Ultra Librarian DF19G-30P-1H(54) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF19 series connector header is a 30 position surface mount, right angle connector with a pitch of 0.039" (1.00mm).

Package: reel of 1000 pieces
Operating Temperature Range: -35°C ~ 85°C
Part Status: EAR99
Supply and Demand Status: limited
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4040
