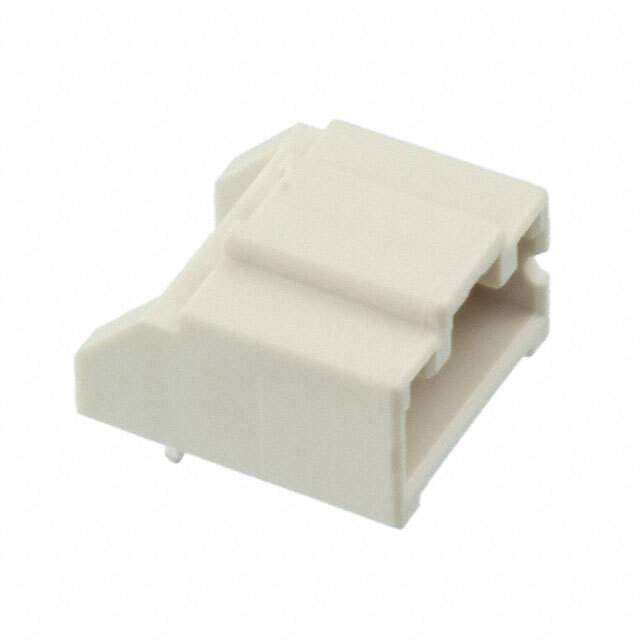

Same model may have multiple batches, images only for reference.

DF1E-4P-2.5DS(35)

Name: DF1E-4P-2.5DS(35)
Brand: Hirose Electric Co Ltd
SKU: 1332999
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DF1E-4P-2.5DS(35)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 2.5MM / Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
Datasheet	DF1E-4P-2.5DS(35) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	4
Number of Rows	1
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.315" (8.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Base Product Number	DF1E
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	Q12651274,541-0987-6-35,DF1E-4P-2.5DS(35)-ND,5410987635,H125158
Standard Package	100
Win Source Part Number	1332999-DF1E-4P-2.5DS(35)
Ultra Librarian 3D Model	Ultra Librarian DF1E-4P-2.5DS(35) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF1E-4P-2.5DS(35) is a rectangular connector header manufactured by Hirose Electric Co Ltd.

Positions: 4
Application: Board-to-Cable/Wire
Pitch-Mating: 0.098" (2.50mm)
Termination: Solder
Shrouded: 4 wall
Mounting: Through-Hole, Right-Angle
Current Rating: 3A
Temperature Range: -35°C to 85°C
