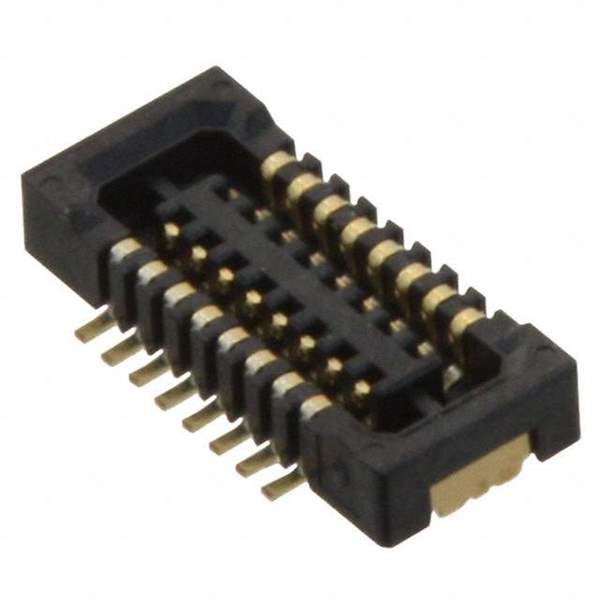

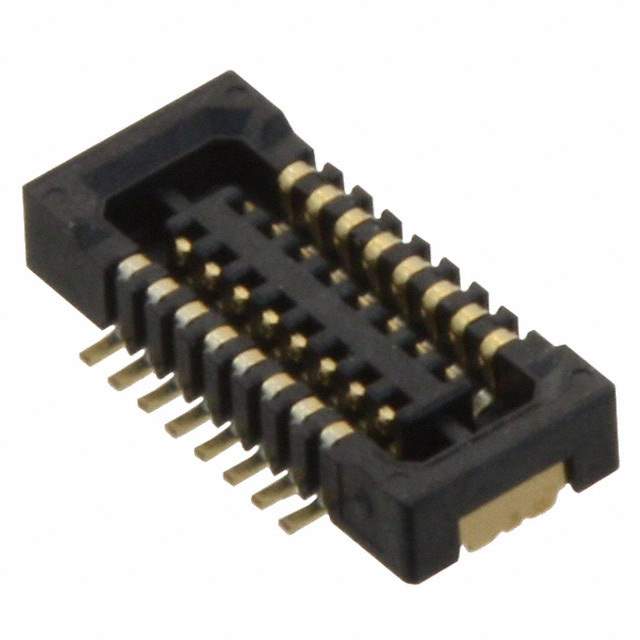

DF37NB-16DS-0.4V(51)

Part No DF37NB-16DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 16POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 000656-DF37NB-16DS-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian DF37NB-16DS-0.4V(51) CAD Model

Description

DF37NB-16DS-0.4V(51) from Hirose Electric Co Ltd is a fine-pitch rectangular board-to-board receptacle designed for compact, high-density electronic assemblies where space, profile, and interconnect reliability matter. With a 0.40 mm pitch, 16 positions, dual-row layout, SMT mounting, and center strip contacts, it is well suited for portable devices, embedded modules, industrial control boards, compact consumer electronics, and other stacked PCB designs that require low mating height. Features such as gold contact finish and solder retention support stable assembly performance in volume manufacturing. Based on the provided product data, the part status is Active, which is favorable for current production programs, although the broader lifecycle field is listed as unknown and should still be verified through Hirose documentation for long-term planning. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available pending confirmation from the manufacturer or latest datasheet.
