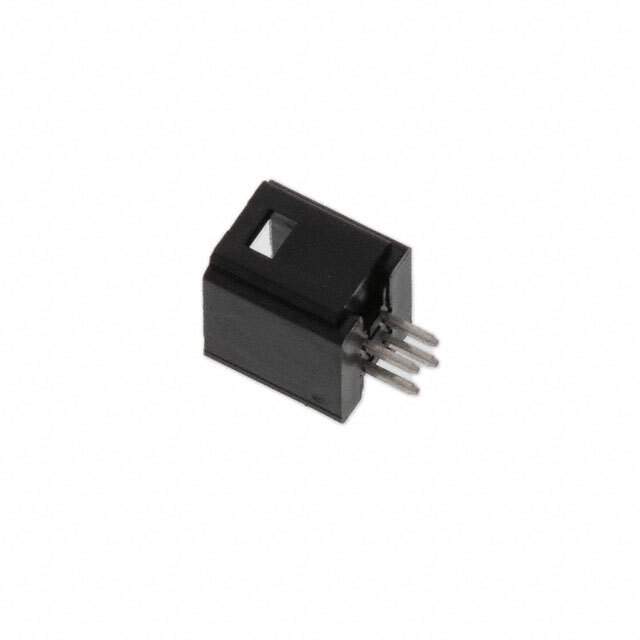

Same model may have multiple batches, images only for reference.

DF51K-4DP-2DSA(800)

Name: DF51K-4DP-2DSA(800)
Brand: Hirose Electric Co Ltd
SKU: 1333061
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF51K-4DP-2DSA(800)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 2MM DUAL TIN PCB 4POS / Connector Header Through Hole 4 position 0.079" (2.00mm)
Datasheet	DF51K-4DP-2DSA(800) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.331" (8.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC/DC
Contact Finish Thickness - Post	39.4µin (1.00µm)
Applications	General Purpose, Industrial, Medical
Base Product Number	DF51K
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	26-DF51K-4DP-2DSA(800)
Standard Package	100
Win Source Part Number	1333061-DF51K-4DP-2DSA(800)
Ultra Librarian 3D Model	Ultra Librarian DF51K-4DP-2DSA(800) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF51K-4DP-2DSA(800) is a 4-position male pin header connector that belongs to the rectangular connector family.

Application: Board-to-Cable/Wire
Pitch: 2.00mm
Mounting Type: Through Hole
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 250VAC/DC
Current Rating: Varies by Wire Gauge
Temperature Range: -55°C to 105°C
Flammability Rating: UL94 V-0
Shrouded: 4-Wall
Fastening Type: Latch Holder
Contact Length: 3.00mm
Insulation Height: 8.40mm
RoHS Compliant: Yes
