Same model may have multiple batches, images only for reference.

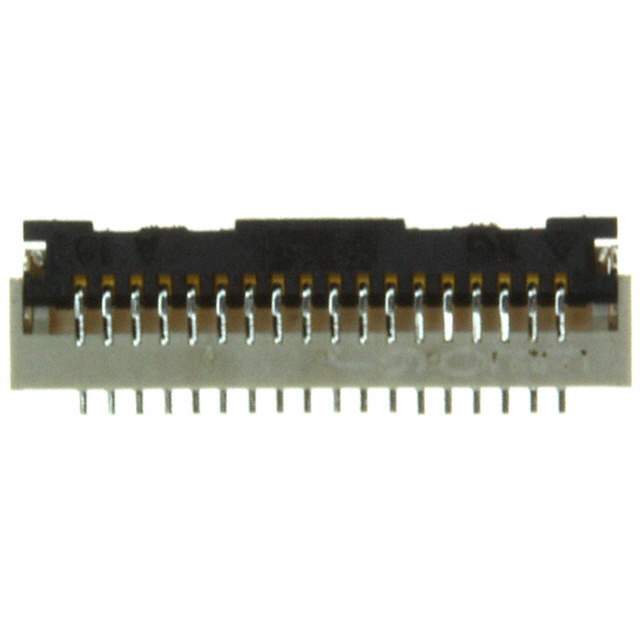

FH19S-18S-0.5SH(51) Real Image
Same model may have multiple batches, images only for reference.

FH19S-18S-0.5SH(51)

Part No FH19S-18S-0.5SH(51)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 18POS 0.50MM R/A / Conn FFC/FPC Connector SKT 18 POS 0.5mm Solder RA SMD T/R
Datasheet
FH19S-18S-0.5SH(51) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH19S
Packaging Reel package
Part Status Obsolete(EOL)
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention
Voltage Rating 50V
Operating Temperature Range -55°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Win Source Part Number 774559-FH19S-18S-0.5SH(51)
Popularity Medium
Supply and Demand Status Limited
Family Name FH19S
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FH19S-18S-0.5SH(51) CAD Model

Description

The FH19S-18S-0.5SH(51) is a connector from Hirose Electric Co Ltd.

  • Series: FH19S
  • Package: Reel
  • Positions: 18
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder Retention, Solder
  • Contact Finish: Tin-Lead
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.036" (0.90mm)
  • FFC/FPC Compatibility: FFC, FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.30mm
  • Locking Feature: Flip Lock
  • Cable End Type: Tapered
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Mounting Type: Surface Mount, Right Angle
  • Mating Cycles: 20
  • Part Status: Obsolete (EOL)
  • Alternative to: FH19S-18S-0.5SH(05)
