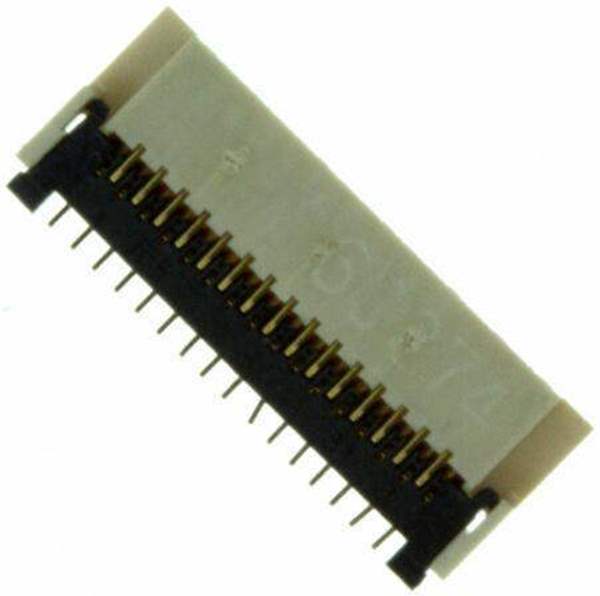

FH23-31S-0.3SHAW(05)Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH23-31S-0.3SHAW(05)

Part No FH23-31S-0.3SHAW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 31POS 0.3MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Part Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.012" (0.30mm)
FFC, FCB Thickness 0.20mm
Height Above Board 0.049" (1.25mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Low Insertion Force (LIF)
Win Source Part Number WS1305512-FH23-31S-0.3SHAW(05)
Ultra Librarian 3D Model Ultra Librarian FH23-31S-0.3SHAW(05) CAD Model

Description

31 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
