Same model may have multiple batches, images only for reference.

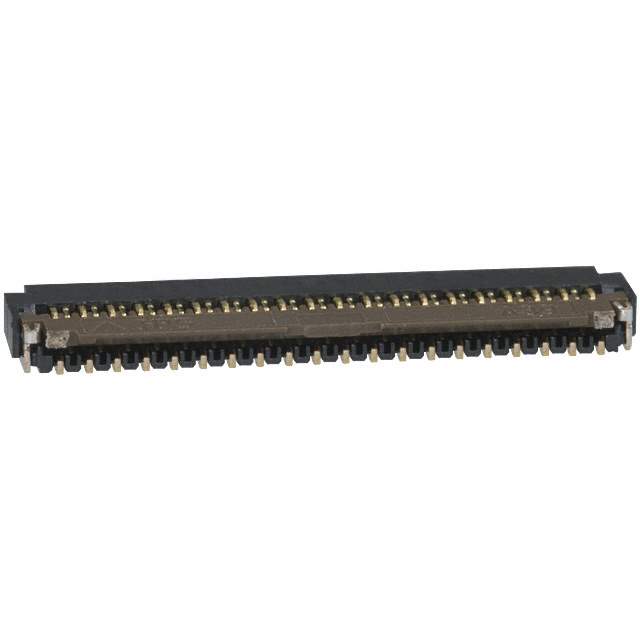

FH26-39S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH26-39S-0.3SHW(05)

Part No FH26-39S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 39POS 0.30MM R/A
Datasheet
FH26-39S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038746-FH26-39S-0.3SHW(05)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH26-39S-0.3SHW(05) CAD Model

Description

The Hirose Electric Co Ltd FH26-39S-0.3SHW(05) connector is a high-quality and reliable connector used in various electronic devices.

  • Positions: 39
  • Pitch: 0.012 inches (0.30mm)
  • Feature: Zero Insertion Force (ZIF)
  • Cable Type: Flat Flex Cables (FFC) and Flexible Printed Circuits (FPC)
  • Feature: Flip Lock
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Actuator Material: Polyamide (PA) and Nylon
  • Actuator Color: Brown
  • Height Above Board: 0.039 inches (1.00mm)
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Mounting Style: Surface Mount, Right-Angle
  • Mating Cycle: 10
  • Temperature Range: -55°C to 85°C
