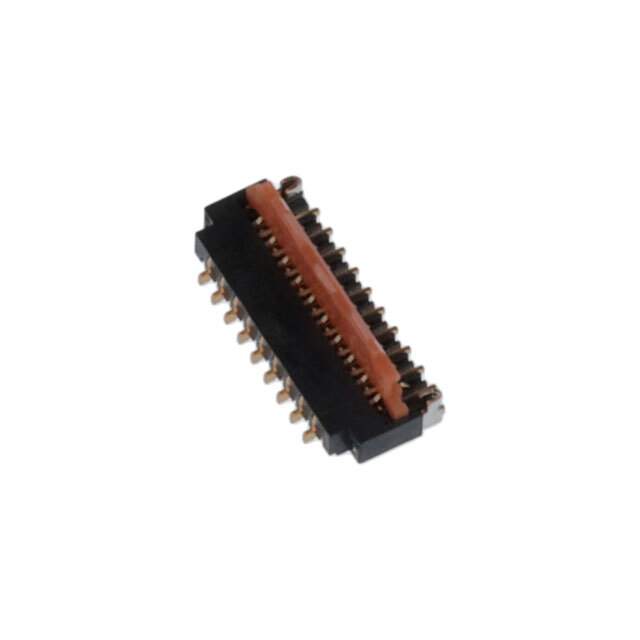

FH26W-19S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

FH26W-19S-0.3SHW(60)

Part No FH26W-19S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 0.3MM SMD / 19 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH26
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 19
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Base Product Number FH26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names FH26W-19S-0.3SHW(60)-ND,H125793TR,H125793CT,H125793DKR,580-2437-9-60
Standard Package 5,000
Win Source Part Number 1136467-FH26W-19S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-19S-0.3SHW(60) CAD Model

Description

Hirose Electric Co Ltd manufactured FH26 series 1136467-FH26W-19S-0.3SHW(60) is a FFC, FPC (Flat Flexible) Connector with 19 number of positions and a pitch of 0.012" (0.30mm).

  • Manufacturer: Hirose Electric Co Ltd
  • Series: FH26
  • Part Number: 1136467-FH26W-19S-0.3SHW(60)
  • Connector Type: FFC, FPC (Flat Flexible)
  • Number of Positions: 19
  • Pitch: 0.012" (0.30mm)
  • Feature: Zero insertion force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor bronze
  • Voltage Rating: 30V
  • Height Above Board: 0.039" (1.00mm)
  • Flat Flex Type: FPC
  • Locking Feature: Flip lock
  • Cable End Type: Tapered
  • Housing Material: Liquid crystal polymer (LCP)
  • Actuator Material: Polyamide (PA), nylon
  • Material Flammability Rating: UL94 HB
  • Housing Color: Black
  • Standard Package: 5,000
  • Current Rating (Amps): 0.2A
  • ECCN: EAR99
