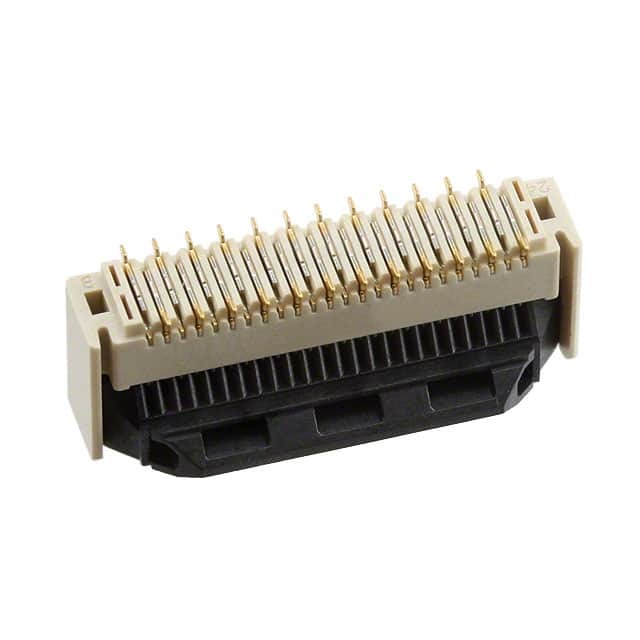

Same model may have multiple batches, images only for reference.
FH40-24S-0.5SV(99)
Same model may have multiple batches, images only for reference.

FH40-24S-0.5SV(99)

Part No FH40-24S-0.5SV(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 24POS 0.5MM SMD / 24 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH40
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.228" (5.80mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH40
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 871945-FH40-24S-0.5SV(99)
Ultra Librarian 3D Model Ultra Librarian FH40-24S-0.5SV(99) CAD Model

Description

The 871945-FH40-24S-0.5SV(99) is a FFC, FPC (Flat Flexible) connector assembly from Hirose Electric Co Ltd's FH40 series.

  • Part Number: 871945-FH40-24S-0.5SV(99)
  • Type: FFC, FPC (Flat Flexible) connector assembly
  • Series: FH40 series
  • Manufacturer: Hirose Electric Co Ltd
  • Connector Type: Receptacle
  • Positions: 24
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting: Surface mount
  • Height Above Board: 0.228" (5.80mm)
  • Category: FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
  • Package: Tape and reel
  • Standard Package: 500 pieces
  • ECCN: EAR99
  • REACH: Not affected
  • MSL Level: 1 (unlimited)
  • Current Rating: 0.5A
  • Voltage Rating: 50V
  • Status: Active
