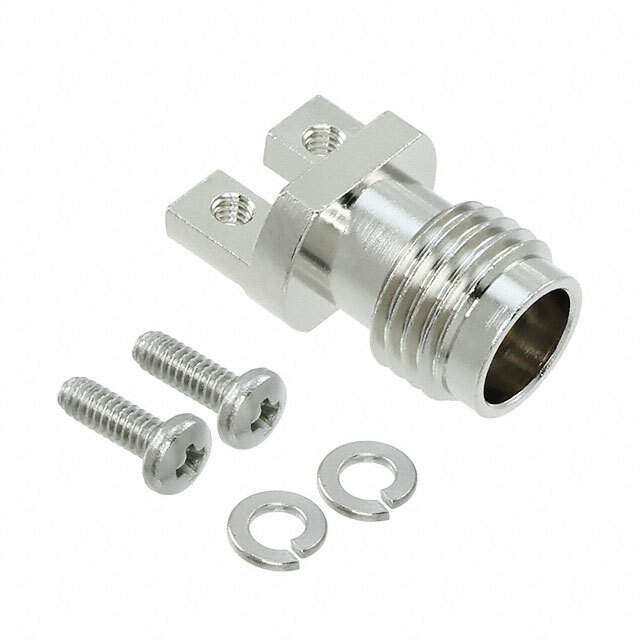

H2.4-LR-SR2(12) Real Image
Same model may have multiple batches, images only for reference.

H2.4-LR-SR2(12)

Part No H2.4-LR-SR2(12)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN 2.4MM RCPT STR 50OHM EDGEMT / 2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50Ohm Board Edge, End Launch Compression
Datasheet
H2.4-LR-SR2(12) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Series 2.4mm
Package Bulk
Connector Style 2.4mm (APC-2.4, OS-50)
Connector Type Receptacle, Female Socket
Contact Termination Compression
Shield Termination Screw
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 50 GHz
Number of Ports 1
Features Mounting Hardware
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 5 pcs - 1 Connector, 2 Screws, 2 Spring Washers
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 105°C
Mating Cycles 500
Base Product Number H2.4
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1349118-H2.4-LR-SR2(12)
Ultra Librarian 3D Model Ultra Librarian H2.4-LR-SR2(12) CAD Model

Description

The 1349118-H2.4-LR-SR2(12) is a coaxial connector assembly from Hirose Electric Co Ltd with a receptacle, female socket connector type and threaded fastening type.

  • Connector Type: Coaxial Connector Assembly
  • Connector Style: 2.4mm (APC-2.4, OS-50)
  • Frequency Range: Up to 50 GHz
  • Impedance: 50 Ohm
  • Connector Type: Receptacle, Female Socket
  • Fastening Type: Threaded
  • Housing Color: Silver
  • Body Material: Brass with Nickel Finish
  • Center Contact Material: Beryllium Copper with Gold Plating
  • Dielectric Material: PTFE
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Board Edge and End Launch
  • Includes: 5 Pieces (1 Connector, 2 Screws, 2 Spring Washers)
