Same model may have multiple batches, images only for reference.

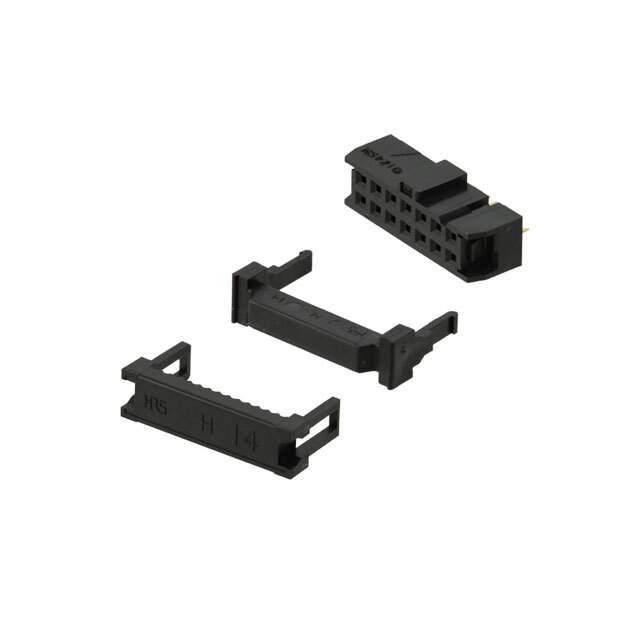

HIF3BA-14D-2.54R(63) Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-14D-2.54R(63)

Part No HIF3BA-14D-2.54R(63)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN SOCKET 14POS IDC 28AWG GOLD / 14 Position Rectangular Socket Connector IDC Gold 28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series HIF3B
Package Tray
Connector Type Socket
Contact Type Female Socket
Number of Positions 14
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness 7.87µin (0.200µm)
Color Black
Base Product Number HIF3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 26-HIF3BA-14D-2.54R(63),610-0022-0-63
Standard Package 140
Win Source Part Number 1196973-HIF3BA-14D-2.54R(63)
Ultra Librarian 3D Model Ultra Librarian HIF3BA-14D-2.54R(63) CAD Model

Description

The HIF3BA-14D-2.54R(63) is a rectangular connector socket manufactured by Hirose Electric Co Ltd.

  • Pitch: 0.100" (2.54mm)
  • Package: Tray
  • Positions: 14
  • Mounting: Free Hanging, Panel Mount
  • Contact Type: Female Socket
  • Contact Finish: Gold
  • Wire Gauge: 28 AWG
  • Wire Type: Ribbon Cable
