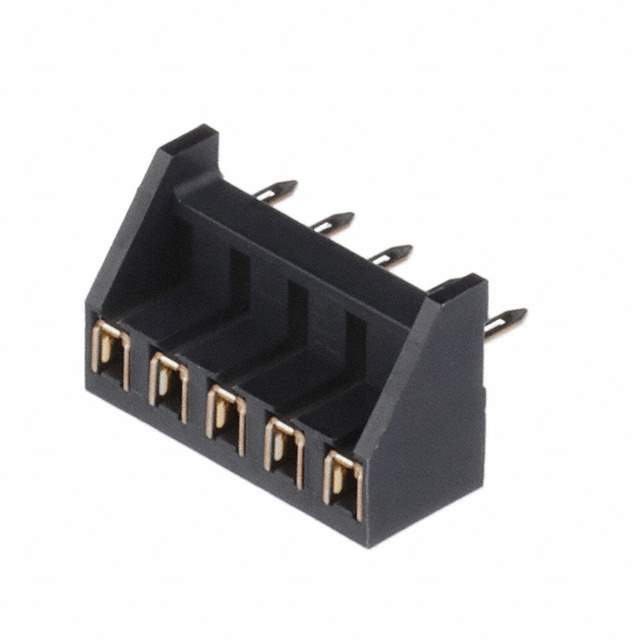

MDF7-5S-2.54DSA(56) Real Image
Same model may have multiple batches, images only for reference.

MDF7-5S-2.54DSA(56)

Part No MDF7-5S-2.54DSA(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 5POS 0.1 GOLD PCB
Datasheet
MDF7-5S-2.54DSA(56) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 5 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Hirose Electric Co Ltd
Series MDF7
Package Bulk
Operating Temperature Range -35°C ~ 85°C
Mounting Through Hole
Family Name MDF7
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 547-0112-9-56, H126273, MDF7-5S-2.54DSA(56)-ND
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926914-MDF7-5S-2.54DSA(56)
Ultra Librarian 3D Model Ultra Librarian MDF7-5S-2.54DSA(56) CAD Model

Description

The MDF7-5S-2.54DSA(56) is an electronic component manufactured by Hirose Electric Co Ltd, supply and demand status is balanced.

  • Type: 5 Position Receptacle Connector
  • Entry: Bottom Entry
  • Mounting: Through Hole
  • Pitch: 2.54mm
  • Plating: Gold
  • Operating Temperature: -35°C to 85°C
