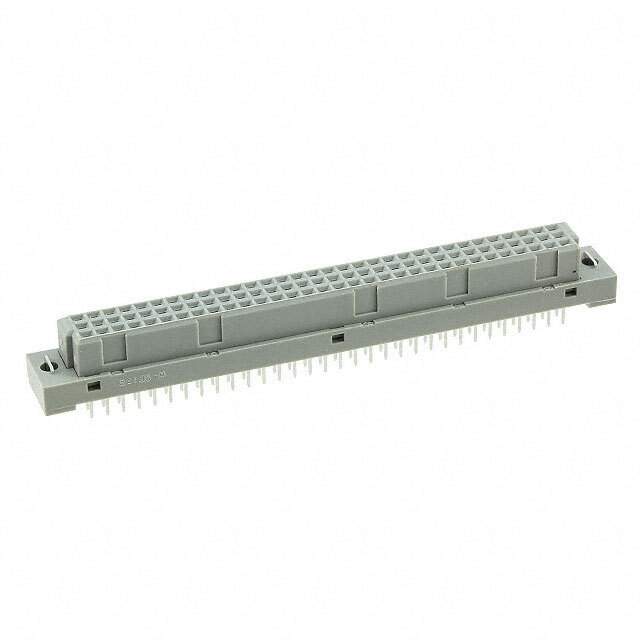

The Hirose Electric Co Ltd PCN10EA-96S-2.54DSA(72) connector is a receptacle with female sockets.

• Positions: It has 96 positions, all loaded, and 3 rows.
• Termination: The connector is terminated through soldering
• Pitch: and has a pitch of 0.100" (2.54mm).
• Insulation Material: The insulation material is made of Polybutylene Terephthalate (PBT) with a flammability rating of UL94 V-0.
• Contact Finish: The contact finish is gold
• Current Rating: and has a current rating of 2A.
• Board Lock: The connector comes with a board lock feature
• Mounting: and is mounted through hole.
• Operating Temperature Range: It has an operating temperature range of -55°C ~ 85°C
• Package: and is supplied in a tray package.
• Status: The connector is obsolete, and alternative parts include 09032326824, XC5D-9621, 09032962825, 09032967825, 2-1393659-8, PCN10-96P-2.54DSA(72)PCN10EA-96S-2.54DSA(72).
