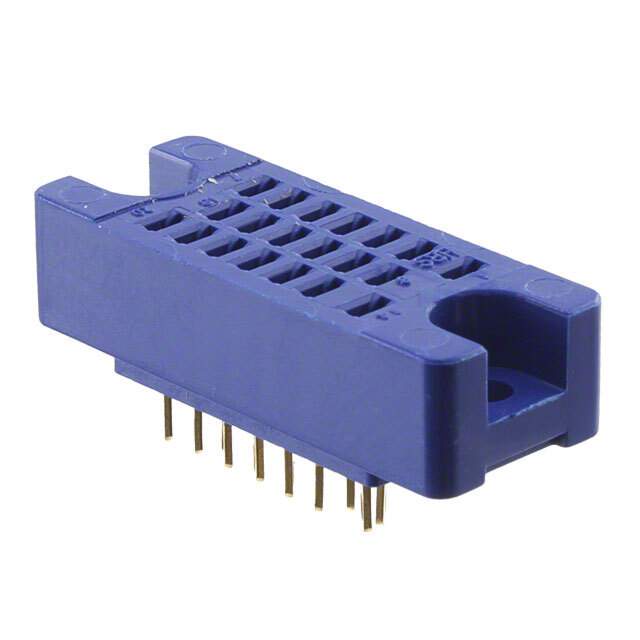

S-1620G(09) Real Image
Same model may have multiple batches, images only for reference.

S-1620G(09)

Part No S-1620G(09)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series Sumicon 1600
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Number of Rows 3
Mounting Type Free Hanging (In-Line)
Cable Termination Solder Eyelet
Wire Type Discrete
Features Flange
Contact Finish Gold
Color Blue
Base Product Number S-1620G
Other Names T1050603A,Q4760536B,S-1620G(09),S1620G09,216-0058-2-09,H12188
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293380-S-1620G(09)
Ultra Librarian 3D Model Ultra Librarian S-1620G(09) CAD Model

Description

The Sumicon 1600 series 20-position rectangular connector features a flange and receptacle connector type with a female socket contact.

  • Contact Finish: Gold
  • Cable Termination: Solder Eyelet
  • Mounting: Free Hanging (In-Line)
  • Wire Type: Discrete
  • ECCN: EAR99
  • Manufacturer: Hirose Electric Co Ltd
  • Package: Bulk
  • Standard Package: 20
  • HTSUS: 8536.69.8000
