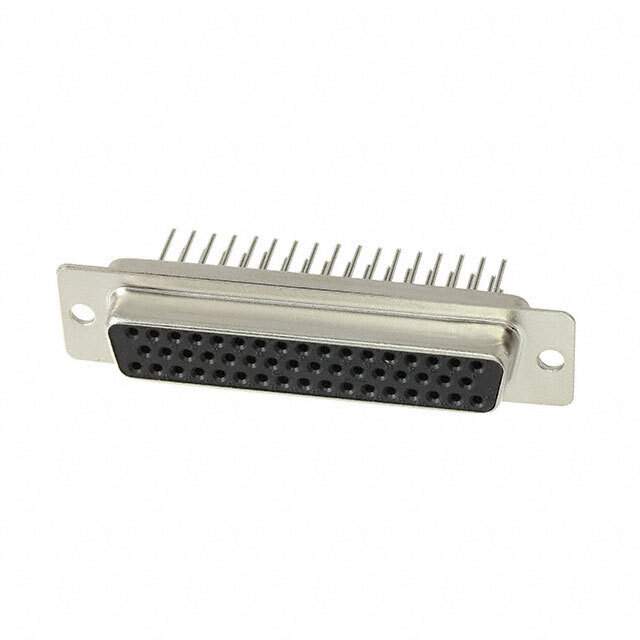

SDDG-50S(55) Real Image
Same model may have multiple batches, images only for reference.

SDDG-50S(55)

Part No SDDG-50S(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDDG
Other Names -SDDG-50S(55),H122925,*SDDG-50S(55),211-0632-4-55,*SDDG-50S(55)
Standard Package 48
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294114-SDDG-50S(55)
Ultra Librarian 3D Model Ultra Librarian SDDG-50S(55) CAD Model

Description

The SD series connector is a D-sub connector that features 50 positions and a black color.

  • Series: SD
  • Positions: 50
  • Color: Black
  • Connector Type: D-sub
  • Contact Type: Receptacle, Female Sockets
  • Contact Finish: Gold
  • Termination: Solder
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Mounting Type: Panel Mount, Through Hole
  • Packaging: Tray
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Hirose Electric Co Ltd
