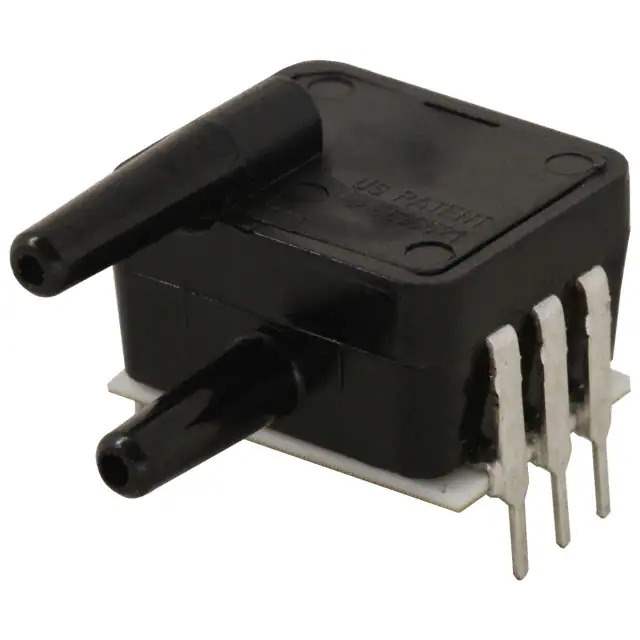

SDX05D4 Real Image
Same model may have multiple batches, images only for reference.

SDX05D4

Part No SDX05D4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSID 0.09" .06V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series SDX
Package Bulk
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 60 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.09" (2.28mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 664843-SDX05D4
Ultra Librarian 3D Model Ultra Librarian SDX05D4 CAD Model

Description

The 664843-SDX05D4 is a pressure sensor from Honeywell's SDX series.

  • Output Type: Wheatstone Bridge, Temperature Compensated
  • Output Range: 0 mV to 60 mV
  • Supply Voltage: 20V
  • Pressure Range: 5PSI (34.47kPa)
  • Maximum Pressure: 20PSI (137.9kPa)
  • Mounting Style: Board Mount
  • Termination Style: PC Pin
  • Accuracy: ±1%
  • Operating Temperature Range: -40°C to 85°C
  • Package: 6-DIP module
