Same model may have multiple batches, images only for reference.

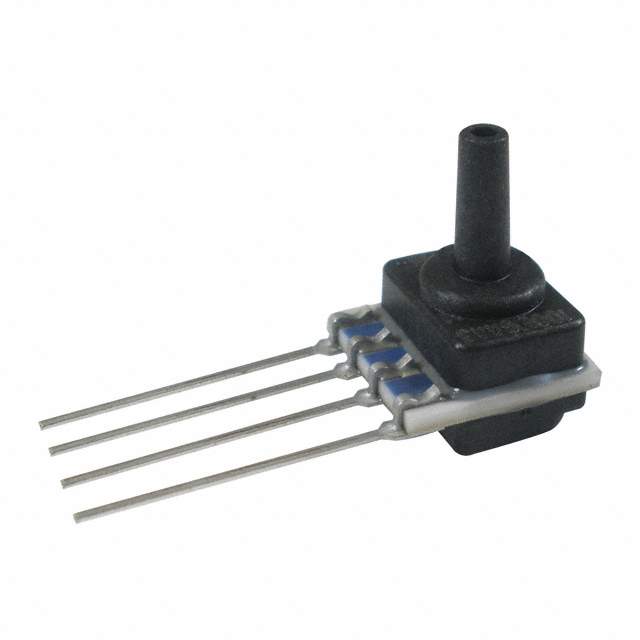

SSCSLNN030PAAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSLNN030PAAA5

Part No SSCSLNN030PAAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.1" (2.47mm) Tube 0.5 V ~ 4.5 V 4-SIP, Side Port
Datasheet
SSCSLNN030PAAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 30PSI (206.84kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSLNN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234707-SSCSLNN030PAAA5
Ultra Librarian 3D Model Ultra Librarian SSCSLNN030PAAA5 CAD Model

Description

The Honeywell TruStability® SSC pressure sensor is designed for board mount applications.

  • Voltage Supply Range: 4.75V to 5.25V
  • Output Type: analog voltage
  • Output Range: 0.5V to 4.5V
  • Accuracy: ±0.25%
  • Pressure Type: absolute
  • Operating Pressure: 30PSI (206.84kPa)
  • Maximum Pressure Range: 60PSI (413.69kPa)
  • Port Style: barbless, with a male 0.1" (2.47mm) tube
  • Package Type: 4-SIP, Side Port
  • Device Package: 4-SIP
