Same model may have multiple batches, images only for reference.

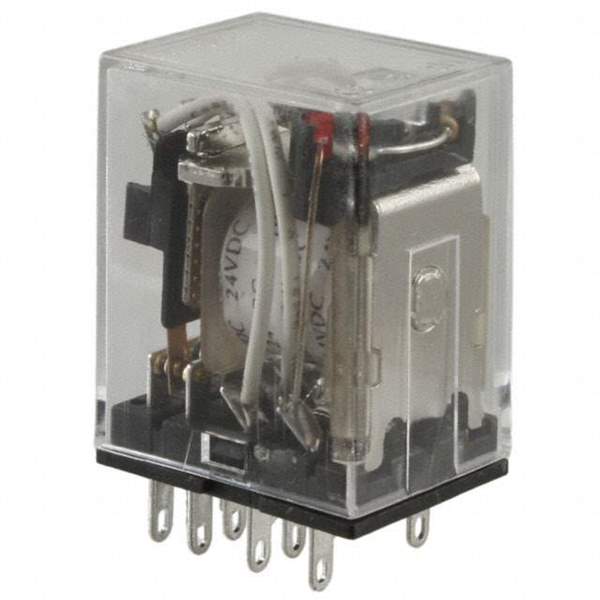

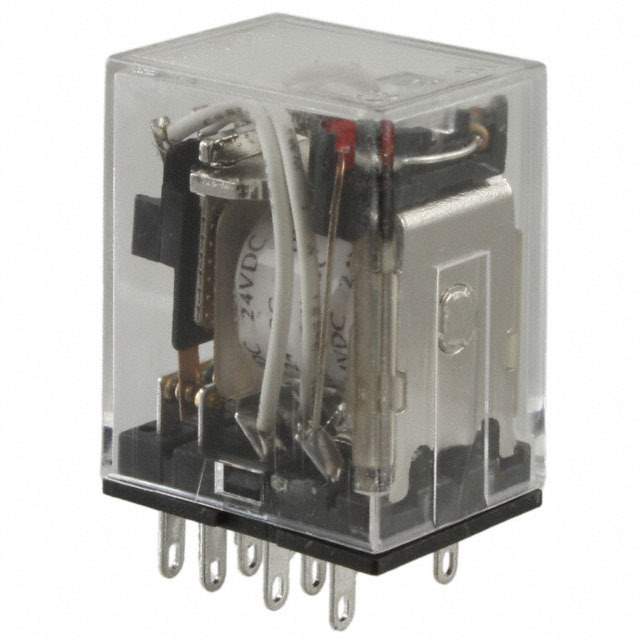

SZR-MY4-N1-DC24V Real Image
Same model may have multiple batches, images only for reference.

SZR-MY4-N1-DC24V

Part No SZR-MY4-N1-DC24V
Manufacturer Honeywell
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 3A 24V
Datasheet
SZR-MY4-N1-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 40.9mA
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 125VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 20ms
Features LED Indicator
Mounting Socketable
Termination Style Plug In
Coil Power 900 mW
Coil Resistance 650 Ohms
Win Source Part Number 138419-SZR-MY4-N1-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SZR-MY4-N1-DC24V CAD Model

Description

The Honeywell Sensing and Productivity Solutions SZR-MY4-N1-DC24V is a general-purpose relay that is designed to switch high power loads.

  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Type: General-Purpose Relay
  • Designed to: Switch High Power Loads
  • Applications: Motor Control, Lighting Control, and HVAC Equipment
  • Contact Configuration: 4PDT
  • Maximum Switching Voltage: 250VAC and 125VDC
  • Package: Socketable
