Same model may have multiple batches, images only for reference.

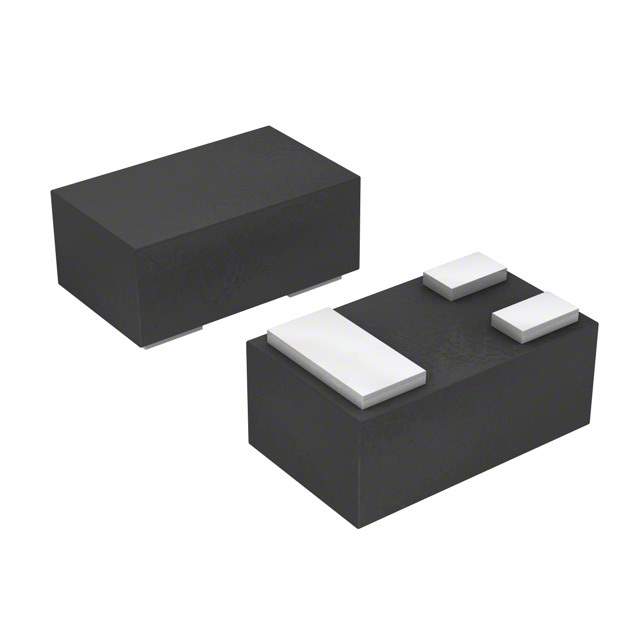

ESD201B203LRHE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

ESD201B203LRHE6327XTSA1

Part No ESD201B203LRHE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 12.1VC TSLP-3 / 12.1V (Typ) Clamp 16A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-3
Datasheet
ESD201B203LRHE6327XTSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Infineon Technologies
Package Tape & Reel
Product Status Obsolete
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Clamping (Max) @ Ipp 12.1V (Typ)
Current - Peak Pulse (10/1000µs) 16A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 5pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SC-101, SOT-883
Supplier Device Package PG-TSLP-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2156-ESD201B203LRHE6327XTSA1,ESD201B203LRHE6327XTSA1DKR,SP000992744,INFINFESD201B203LRHE6327XTSA1,ESD201B203LRHE6327XTSA1CT,ESD201B203LRHE6327XTSA1TR
Standard Package 15,000
Win Source Part Number 971744-ESD201B203LRHE6327XTSA1
Ultra Librarian 3D Model Ultra Librarian ESD201B203LRHE6327XTSA1 CAD Model

Description

The Infineon ESD201B203LRHE6327XTSA1 is a bidirectional Zener diode designed for use in circuit protection applications.

  • Reverse Standoff Voltage (Max): 5.5V
  • Clamping Voltage (Typ): 12.1V
  • Package: SC-101, SOT-883
