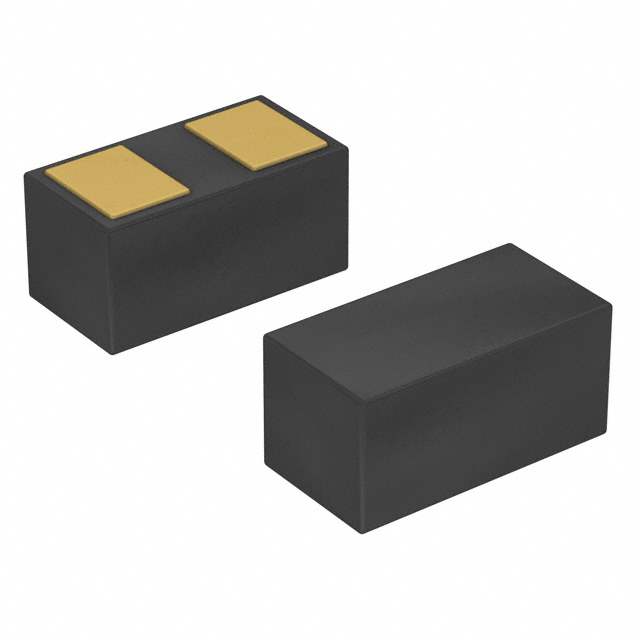

ESD8V0R1B02LSE6327XTSA1 Real Image
Same model may have multiple batches, images only for reference.

ESD8V0R1B02LSE6327XTSA1

Part No ESD8V0R1B02LSE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 14VWM 28VC TSSLP2-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 14V (Max)
Minimum Breakdown Voltage 8.5V
Max Clamping Voltage 28V
Peak Pulse Current(Ippm) 1A (8/20μs)
Applications Automotive
Capacitance @ Frequency 4pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSSLP-2
Win Source Part Number 096181-ESD8V0R1B02LSE6327XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 15k pcs
Ultra Librarian 3D Model Ultra Librarian ESD8V0R1B02LSE6327XTSA1 CAD Model

Description

ESD8V0R1B02LSE6327XTSA1 - ESD Protection Diode with Enhanced Clamping

The ESD8V0R1B02LSE6327XTSA1 is a specialized ESD protection diode featuring enhanced clamping capabilities intended for sensitive application areas. Its advanced performance ensures stability and reliability across various electronic applications.

  • Applications:
    • Laptops
    • Gaming consoles
    • Networking equipment
    • PDAs
  • Features and Benefits:
    • Improved clamping voltage characteristics
    • Protection for interfaces adhering to IEC standards
    • High surge absorption capability
    • Compact size eases integration into designs
  • Additional Details:
    • Operational voltage level at 8V
    • Available in a SOD-323 package for easy PCB design
