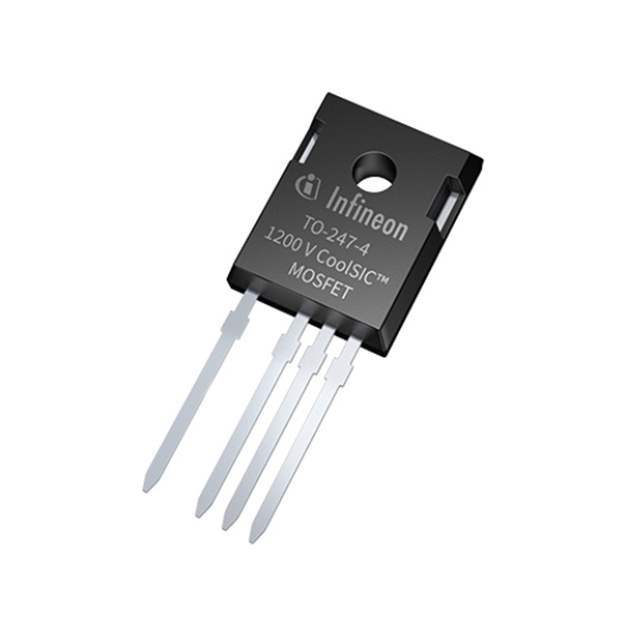

IMZ120R060M1HXKSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

IMZ120R060M1HXKSA1

Part No IMZ120R060M1HXKSA1
Manufacturer Infineon Technologies
Catalog FETs - Single
Description SICFET N-CH 1.2KV 36A TO247-4
Datasheet
IMZ120R060M1HXKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202572-IMZ120R060M1HXKSA1
Manufacturer Infineon Technologies
Category Discrete Semiconductor Products- Transistors- FETs, MOSFETs- Single FETs, MOSFETs
Series CoolSiC™
Package Package
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Power Dissipation (Max) 150W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Ultra Librarian 3D Model Ultra Librarian IMZ120R060M1HXKSA1 CAD Model

Description

The Infineon Technologies 1202572 is a high-performance N-channel SiCFET (Silicon Carbide) transistor.

  • Drain-to-Source Voltage (Vdss): 1200V
  • Maximum Power Dissipation: 150W (Tc)
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Package Type: Package
  • Product Status: Active
