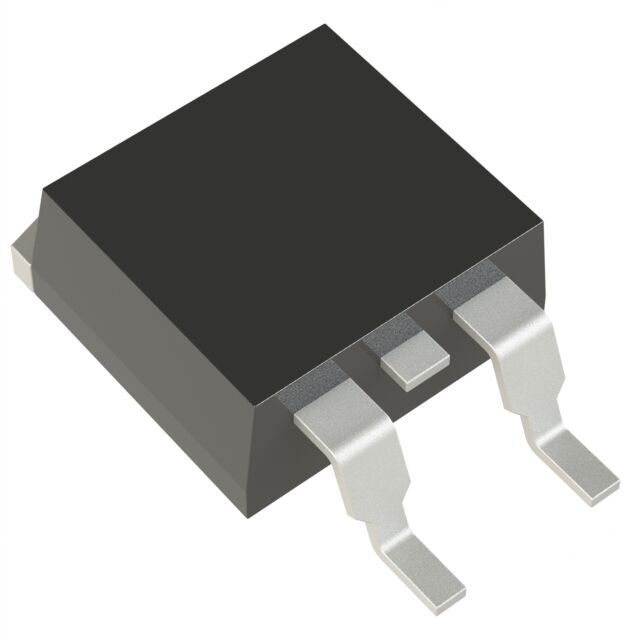

Same model may have multiple batches, images only for reference.
IPB60R199CPAATMA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IPB60R199CPAATMA1

Part No IPB60R199CPAATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel 600 V 16A (Tc) 139W (Tc) Surface Mount PG-TO263-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Infineon Technologies
Series CoolMOS™
Packaging Reel - TR
Part Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 199mOhm @ 9.9A, 10V
Vgs(th) (Max) @ Id 3.5V @ 1.1mA
Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1520 pF @ 100 V
Power Dissipation (Max) 139W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Supplier Device Package PG-TO263-3
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number IPB60R199
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1479628-IPB60R199CPAATMA1
Ultra Librarian 3D Model Ultra Librarian IPB60R199CPAATMA1 CAD Model
