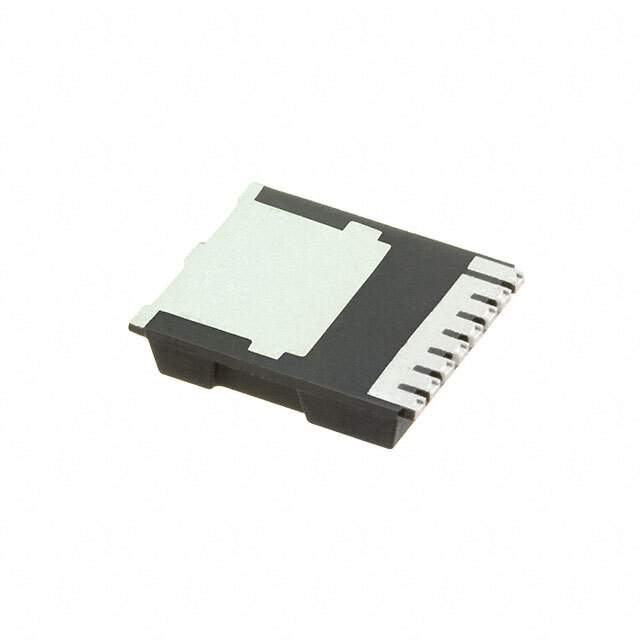

Same model may have multiple batches, images only for reference.

IPLU300N04S4R8XTMA1

Name: IPLU300N04S4R8XTMA1
Brand: Infineon Technologies
SKU: 1325389
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPLU300N04S4R8XTMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 300A 8HSOF / N-Channel 40 V 300A (Tc) 429W (Tc) Surface Mount PG-HSOF-8-1
Datasheet	IPLU300N04S4R8XTMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.77mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 230µA
Gate Charge (Qg) (Max) @ Vgs	287 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	22945 pF @ 25 V
Power Dissipation (Max)	429W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	Surface Mount
Supplier Device Package	PG-HSOF-8-1
Case / Package	8-PowerSFN
Base Product Number	IPLU300
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	IPLU300N04S4R8XTMA1TR,IPLU300N04S4R8XTMA1CT,SP001063102,IPLU300N04S4R8XTMA1DKR
Standard Package	2,000
Win Source Part Number	1325389-IPLU300N04S4R8XTMA1
Ultra Librarian 3D Model	Ultra Librarian IPLU300N04S4R8XTMA1 CAD Model

Alternative Products

Description

The Infineon Technologies IPLU300N04S4R8XTMA1 is a MOSFET transistor with N-channel FET type.

Drain to Source Voltage (Vdss): 40 V
Continuous Drain Current (Id): 300A @ 25°C
Rds On (Max) @ Id, Vgs: 0.77mOhm @ 100A, 10V
Gate Charge (Qg) (Max) @ Vgs: 287 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 22945 pF @ 25 V
Package: PG-HSOF-8-1
ROHS3 Compliant: True
