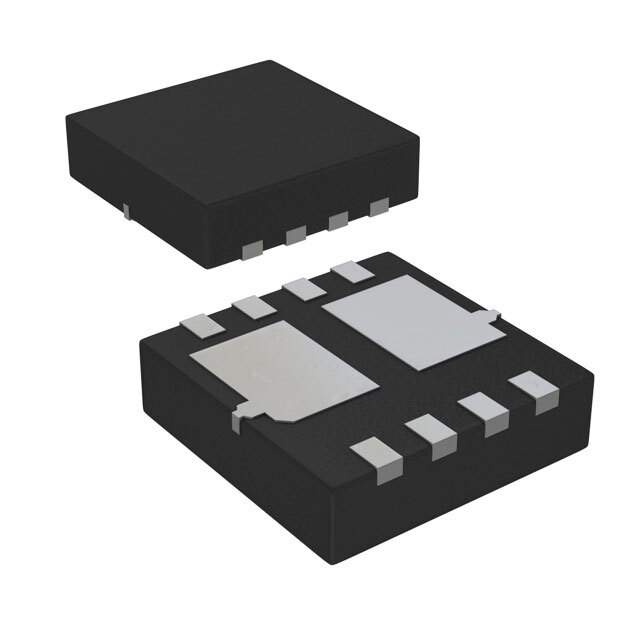

Same model may have multiple batches, images only for reference.

IRFHM792TRPBF

Name: IRFHM792TRPBF
Brand: Infineon Technologies
SKU: 462085
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IRFHM792TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 100V 2.3A 8-Pin PQFN EP T/R / MOSFET 2N-CH 100V 2.3A 8PQFN
Datasheet	IRFHM792TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain-Source Breakdown Voltage	100V
Continuous Drain Current at 25°C	2.3A
Maximum Rds On at Id,Vgs	195 mOhm @ 2.9A, 10V
Gate-Source Threshold Voltage	4V @ 10μA
Max Gate Charge	6.3nC @ 10V
Max Input Capacitance	251pF @ 25V
Maximum Power Dissipation	2.3W
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-PQFN (3.3x3.3), Power33
Win Source Part Number	1046906-IRFHM792TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRFHM792
Introduction Date	May 10, 2011
ECCN	EAR99
Country of Origin	Thailand
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IRFHM792TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRFHM792TRPBF is a dual N-channel FET component designed for use in discrete semiconductor products.

Power Dissipation: 2.3W
Drain-Source Breakdown Voltage: 100V
Continuous Drain Current (25°C): 2.3A
Rds On (Id, Vgs): 195 mOhm @ 2.9A, 10V
Mounting: SMD (SMT)
Case/Package: 8-PQFN (3.3x3.3) Power33
Temperature Range: -55°C to 150°C (TJ)
Popularity: High
Supply and Demand: Balanced
