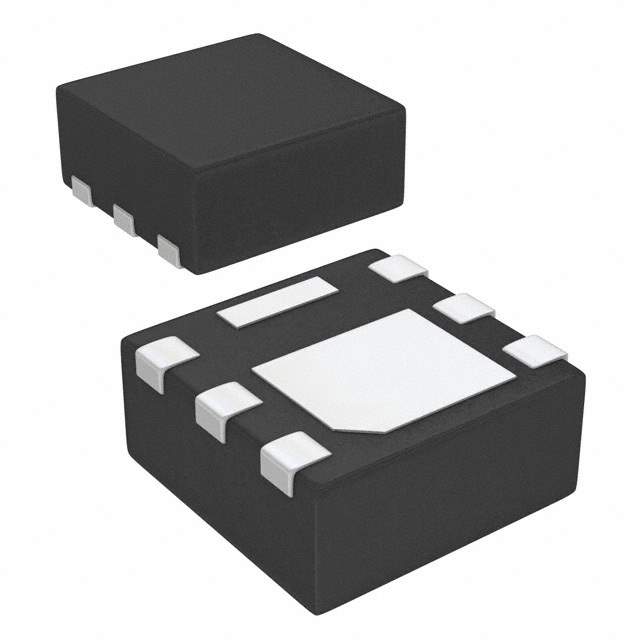

IRLHS2242TR2PBF

Name: IRLHS2242TR2PBF
Brand: Infineon Technologies
SKU: 605848
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRLHS2242TR2PBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	HEXFET Power MOSFET \| MOSFET P-CH 20V 5.8A 2X2 PQFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Status	Obsolete
Transistor Polarity	P-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	20V
Id - Continuous Drain Current	7.2A, 15A
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Maximum) at Id, Vgs	31mOhm at 8.5A, 4.5V
Gate Source Voltage(th) (Maximum) at Id	1.1V at 10μA
Gate Charge (Qg) (Maximum) at Vgs	12nC at 10V
Gate Source Voltage (Maximum)	±12V
Input Capacitance (Ciss) (Maximum) at Vds	877pF at 10V
Power Dissipation (Maximum)	2.1W, 9.6W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	SMD
Supplier Device Package	6-PQFN (2x2)
Manufacturer Package	6-PowerVDFN
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1188536-IRLHS2242TR2PBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRLHS2242TR2PBF CAD Model

Alternative Products

Description

The IRLHS2242TR2PBF is a P-channel MOSFET transistor manufactured by Infineon Technologies.

Packaging: Reel
Mounting Style: SMD
Supplier Device Package: 6-PQFN (2x2)
Drive Voltage (max Rds On, min Rds On): 2.5V, 4.5V
Status: Obsolete
Temperature Range: -55°C to 150°C
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 1
MSL Level: 1 (unlimited)
Vds - Drain-Source Breakdown Voltage: 20V
Id - Continuous Drain Current: 7.2A, 15A
Rds On (maximum) @ Id, Vgs: 31mOhm @ 8.5A, 4.5V
Gate source voltage(th) (maximum) @ Id: 1.1V @ 10μA
Gate charge (Qg) (maximum) @ Vgs: 12nC @ 10V
Gate source voltage (maximum): ±12V
Input capacitance (Ciss) (maximum) @ Vds: 877pF @ 10V
