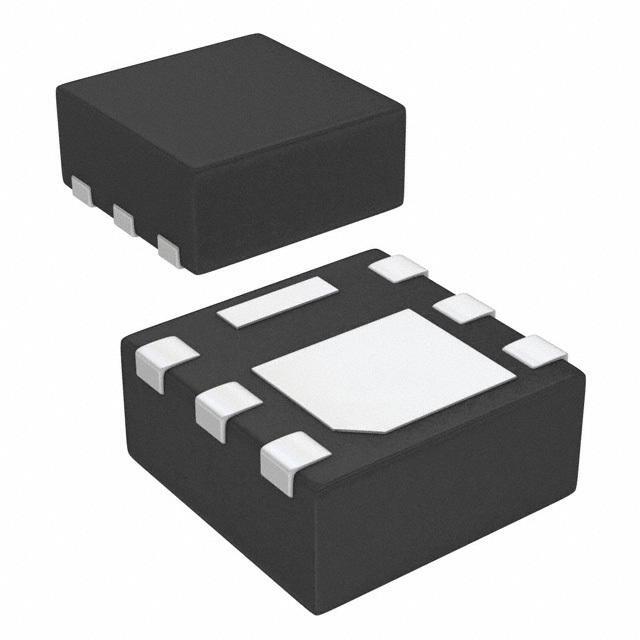

IRLHS6242TRPBF Infineon Technologies
Same model may have multiple batches, images only for reference.

IRLHS6242TRPBF

Part No IRLHS6242TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 10A PQFN
Datasheet
IRLHS6242TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 10A (Ta), 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.1V @ 10μA
Max Gate Charge 14nC @ 4.5V
Max Input Capacitance 1110pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.98W (Ta), 9.6W (Tc)
Maximum Rds On at Id,Vgs 11.7 mOhm @ 8.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-PQFN (2x2)
Dimension 6-PowerVDFN
Win Source Part Number 131769-IRLHS6242TRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRLHS6242TRPBF CAD Model

Description

The Infineon Technologies MOSFET is a high-performance N-channel power transistor that is suitable for use in a variety of applications, including power supplies, motor control, and lighting.

  • Maximum Power Dissipation: 1.98W (Ta), 9.6W (Tc)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 10A (Ta), 12A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 1.1V @ 10μA
  • Maximum Gate Charge: 14nC @ 4.5V
  • Maximum Rds On @ Id,Vgs: 11.7 mOhm @ 8.5A, 4.5V
  • Package: 6-PQFN (2x2)
  • Mounting: Surface-mounting
  • Temperature Range: -55°C to 150°C (TJ)
  • Status: Active
