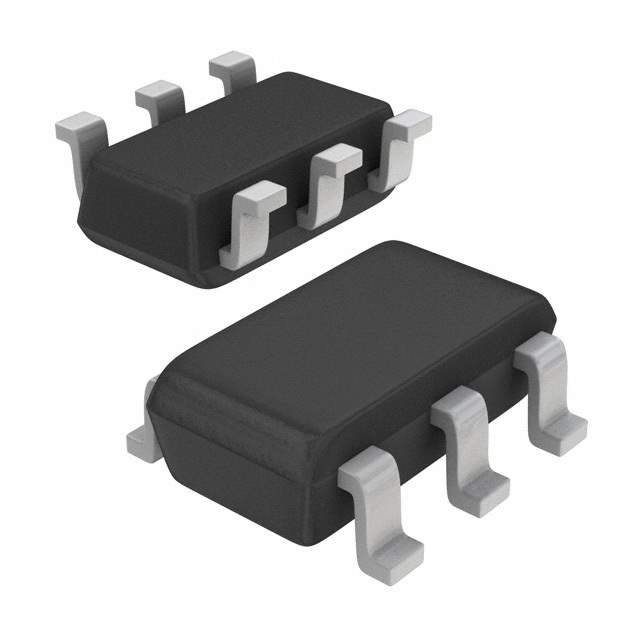

The ZXM62P02E6 is a P-Channel enhancement mode MOSFET from Zetex Semiconductors (now part of Diodes Incorporated). It's designed for low voltage, low RDS(on) applications where high efficiency and small size are important.

Applications

• Load Switching: Used as a high-side switch for controlling power to various loads.
• Power Management: Provides efficient power switching in portable devices.
• Battery Management Systems (BMS): Used in battery protection circuits to prevent over-discharge and over-charge.
• DC-DC Conversion: Can be used in low-power DC-DC converters.
• Portable Equipment: Ideal for use in smartphones, tablets, and other portable devices.

Features

• Low On-Resistance (RDS(on)): Minimizes power loss during switching, improving efficiency.
• Low Gate Threshold Voltage (VGS(th)): Allows for easy driving with low voltage logic.
• Small Footprint: Packaged in a small SOT-23 or similar package for space-constrained applications.
• Fast Switching Speed: Allows for high-frequency operation in switching power supplies.
• Logic Level Compatible: Can be directly driven by logic circuits.

Benefits

• High Efficiency: Low on-resistance reduces power dissipation, improving energy efficiency.
• Simplified Drive Circuitry: Low gate threshold voltage simplifies the design of drive circuits.
• Compact Design: Small package allows for integration into space-constrained applications.
• Fast Switching: Enables high-frequency operation, reducing the size of passive components.
• Increased Battery Life: Low power consumption extends battery life in portable devices.

Technical Specifications

The ZXM62P02E6 has a drain-source voltage (VDS) rating of -20V. It can handle a continuous drain current (ID) of up to -3.8A. The on-resistance (RDS(on)) is typically 0.06 Ohms at a gate-source voltage (VGS) of -4.5V. The gate threshold voltage (VGS(th)) is typically between -0.45V and -0.95V. It is typically packaged in a SOT-23 package. The operating temperature range is usually between -55°C and +150°C. It is designed for logic-level gate drive applications and is RoHS compliant.
