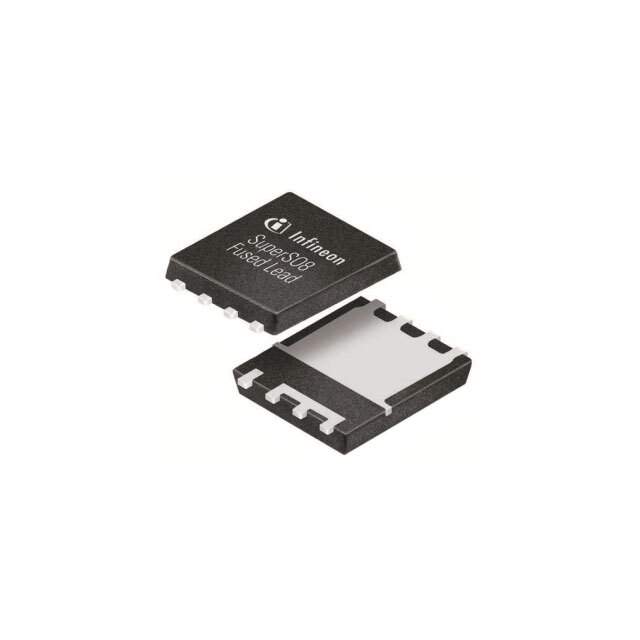

Same model may have multiple batches, images only for reference.

ISC058N04NM5ATMA1

Name: ISC058N04NM5ATMA1
Brand: Infineon Technologies
SKU: 1338462
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISC058N04NM5ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	40V 5.8M OPTIMOS MOSFET SUPERSO8 / N-Channel 40 V 17A (Ta), 63A (Tc) 3W (Ta), 42W (Tc) Surface Mount PG-TDSON-8 FL
Datasheet	ISC058N04NM5ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	OptiMOS™-5
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta) , 63A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	5.8mOhm @ 31A, 10V
Vgs(th) (Max) @ Id	3.4V @ 13µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 20 V
Power Dissipation (Max)	3W (Ta) , 42W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8 FL
Package / Case	8-PowerTDFN
Base Product Number	ISC058N
Standard Package	5,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1338462-ISC058N04NM5ATMA1
Ultra Librarian 3D Model	Ultra Librarian ISC058N04NM5ATMA1 CAD Model

Alternative Products

Description

The Infineon ISC058N04NM5ATMA1 OptiMOS™-5 MOSFET is an N-Channel FET with a drain to source voltage of 40V and a maximum power dissipation of 3W (Ta) or 42W (Tc).

FET Type: N-Channel
Vdss Drain to Source Voltage: 40V
Power Dissipation (Max): 3W (Ta), 42W (Tc)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN
Supplier Device Package: PG-TDSON-8 FL
Vgs Gate-Source Voltage (Max): ±20V
