Same model may have multiple batches, images only for reference.

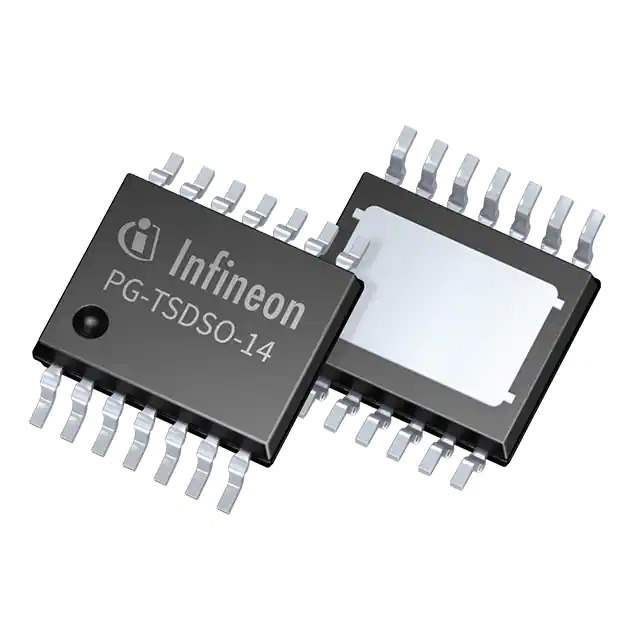

ITS4090QEPDXUMA1 Real Image
Same model may have multiple batches, images only for reference.

ITS4090QEPDXUMA1

Part No ITS4090QEPDXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWTCH N-CHAN 1:1 TSDSO-14 / Power Switch/Driver 1:1 N-Channel 750mA PG-TSDSO-14
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Infineon Technologies
Series PROFET®
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 8V ~ 36V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 750mA
Rds On (Typ) 90mOhm
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed) , Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSO-14
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Base Product Number ITS4090
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1348650-ITS4090QEPDXUMA1
Ultra Librarian 3D Model Ultra Librarian ITS4090QEPDXUMA1 CAD Model

Description

The Infineon Technologies 1348650-ITS4090QEPDXUMA1 is a power distribution switch that is part of the PROFET series.

  • Features: Auto Restart
  • Package: Tape & Reel (TR)
  • Standard Package: 3,000
  • Output Type: N-Channel
  • Input Type: Non-Inverting
  • Interface: On/Off
  • Switch Type: General Purpose
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Number of Outputs: 4
  • Current - Output (Max): 750mA
  • Voltage - Load: 8V ~ 36V
  • Rds On (Typ): 90mOhm
  • Mounting Type: Surface Mount
  • Package / Case: 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: PG-TSDSO-14
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • MSL: 1 (Unlimited)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • REACH Status: REACH Unaffected
  • HTSUS: 8542.39.0001
