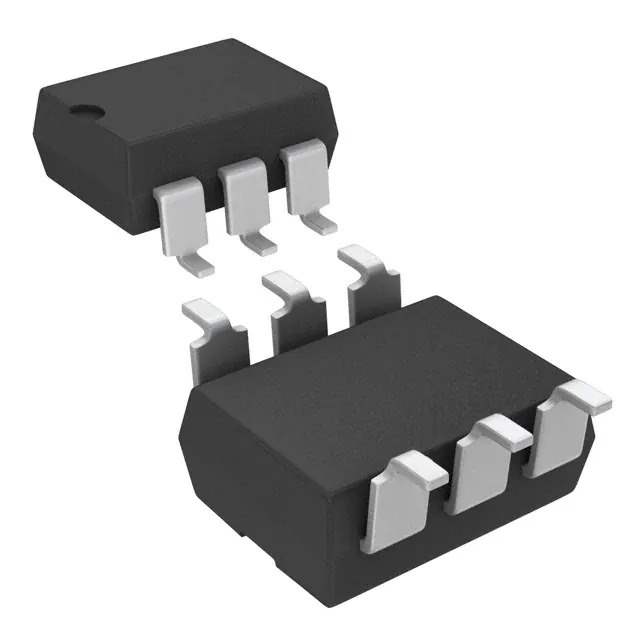

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVU, HEXFET®
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 140 mA
On-State Resistance (Max) 27 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMT
Base Product Number PVU414
Standard Package 750 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658242-PVU414S-TPBF
Ultra Librarian 3D Model Ultra Librarian PVU414S-TPBF CAD Model

Description

The PVU414S-TPBF is a solid-state relay designed for switching AC and DC loads.

  • Series: It is part of the PVU and HEXFET series from Infineon Technologies.
  • Termination Style: This relay has a gull wing termination style
  • Package: and comes in a tape & reel package.
  • Standard Package: The standard package includes 750 pieces.
  • Input Voltage: The PVU414S-TPBF operates with a 1.2VDC input voltage
  • Circuit Configuration: and has a SPST-NO (1 Form A) circuit configuration.
  • On-State Resistance: It has an on-state resistance of 27 Ohms
  • Load Current: and can handle a load current of 140 mA.
  • Switching Voltage: The relay can switch voltages from 0V to 400V
  • Mounting: and is surface mountable with a 6-SMD package.
  • Manufacturer: It is manufactured by Infineon Technologies
  • Status: and is an active product in the market.
  • Suitability: With its reliable solid-state switching capabilities, the PVU414S-TPBF is suitable for various relay applications.
