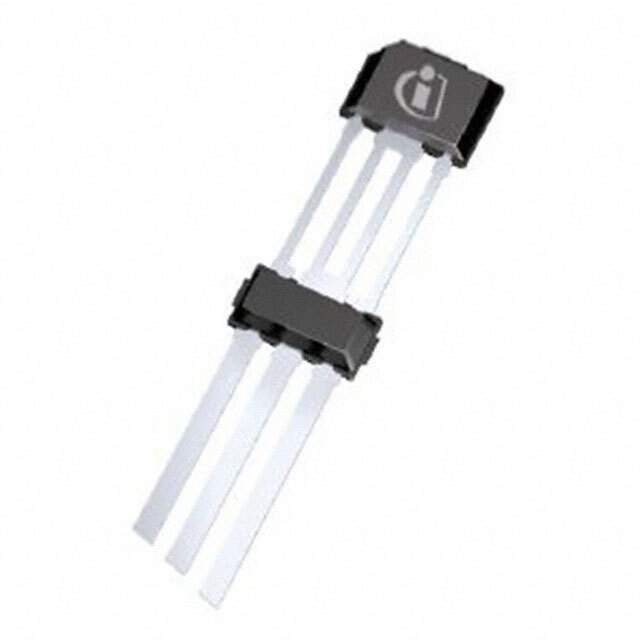

The TLE4927CE6547HAMA1 is a high-precision Hall-effect speed sensor manufactured by Infineon Technologies. It's designed for automotive applications, particularly in wheel speed sensing and crankshaft/camshaft position detection. This sensor provides accurate and reliable speed and position information to the engine control unit (ECU) and other vehicle systems.

Applications:

• Wheel speed sensing in ABS (Anti-lock Braking System)
• Crankshaft position detection in engine management systems
• Camshaft position detection in engine management systems
• Transmission speed sensing
• Industrial speed sensing

Features:

• Hall-Effect Sensor
• High Precision
• Digital Output Signal
• Wide Operating Temperature Range
• High Airgap Sensitivity
• Short Circuit Protection
• Reverse Polarity Protection
• Small Package Size

Benefits:

• Provides accurate and reliable speed and position information for critical vehicle systems.
• Enhances vehicle safety by improving the performance of ABS and other safety features.
• Optimizes engine performance and fuel efficiency.
• Offers robust performance in harsh automotive environments.
• Simplifies system design with its digital output and integrated protection features.

Additional Details:

The TLE4927CE6547HAMA1 uses the Hall effect principle to detect the presence and speed of rotating ferromagnetic targets, such as toothed wheels or magnetic encoders. The sensor outputs a digital signal whose frequency is proportional to the speed of the target. The high airgap sensitivity of the sensor allows it to operate reliably even with relatively large distances between the sensor and the target. The integrated short circuit and reverse polarity protection features protect the sensor from damage in the event of wiring errors or other electrical faults. The small package size of the sensor makes it easy to integrate into space-constrained automotive systems. The sensor is designed to operate over a wide temperature range, ensuring reliable performance in extreme weather conditions. To properly implement the TLE4927CE6547HAMA1, refer to the Infineon datasheet, which provides detailed information on the sensor's electrical characteristics, timing parameters, and application guidelines. Careful attention should be paid to the sensor's mounting and alignment to ensure optimal performance. The datasheet also recommends the use of appropriate filtering and signal conditioning techniques to minimize noise and interference.
