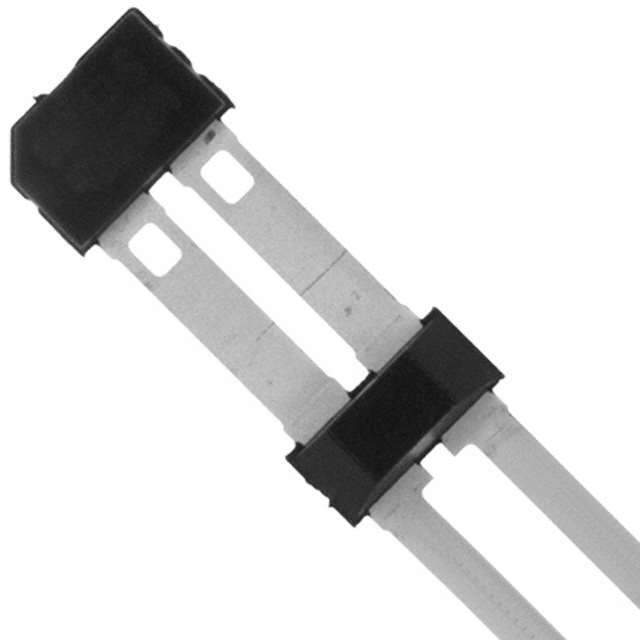

TLE4953CBAMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4953CBAMA1

Part No TLE4953CBAMA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH SPEC PURP SSO-2-2 / Digital Switch Special Purpose Current Source Hall Effect PG-SSO-2-2
Datasheet
TLE4953CBAMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Function Special Purpose
Technology Hall Effect
Polarization North Pole, South Pole
Voltage - Supply 4.5V ~ 20V
Current - Supply (Max) 16.8mA
Output Type Current Source
Mounting Type Through Hole
Supplier Device Package PG-SSO-2-2
Package / Case 2-SIP, SSO-2-2
Base Product Number TLE4953
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names IFEINFTLE4953CBAMA1,TLE4953C,TLE4953CBAMA1CT,SP000710696,TLE4953CBAMA1TB,TLE4953CX,SP000015141,TLE4953C-ND,TLE4953CXA,2156-TLE4953CBAMA1
Standard Package 1,500
Win Source Part Number 979346-TLE4953CBAMA1
Ultra Librarian 3D Model Ultra Librarian TLE4953CBAMA1 CAD Model

Description

The TLE4953CBAMA1 is a magnetic sensor switch from Infineon Technologies.

  • Series: Automotive AEC-Q100
  • Voltage Supply Range: 4.5V to 20V
  • Package: PG-SSO-2-2
  • Mounting: Through hole
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Not recommended for new designs
