TLT9255WLCXUMA1 Infineon Technologies

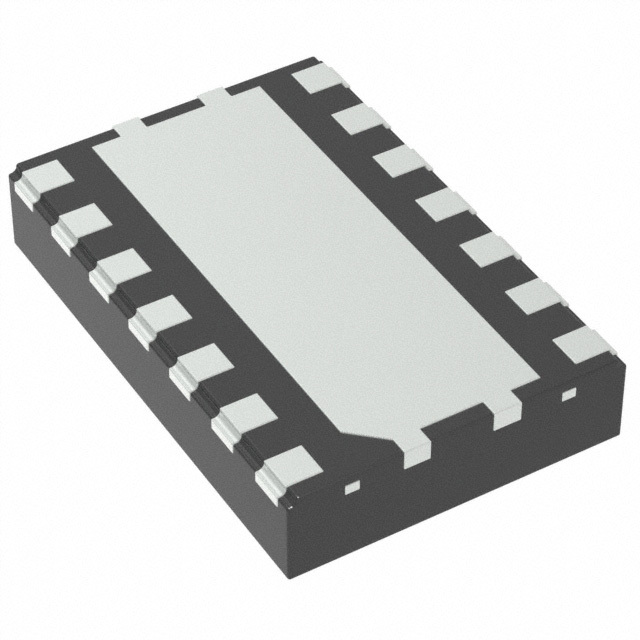

Same model may have multiple batches, images only for reference.

TLT9255WLCXUMA1

Part No TLT9255WLCXUMA1
Manufacturer Infineon Technologies
Catalog Interface - Drivers, Receivers, Transceivers
Description IN VEHICLE NETWORK ICS PG-TSON-1 / 1/1 Transceiver Half CANbus PG-TSON-14-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Drivers, Receivers, Transceivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Type Transceiver
Protocol CANbus
Number of Drivers/Receivers 1/1
Duplex Half
Data Rate 5Mbps
Voltage - Supply 4.75V ~ 5.25V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 14-TDFN Exposed Pad
Supplier Device Package PG-TSON-14-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1353068-TLT9255WLCXUMA1
Ultra Librarian 3D Model Ultra Librarian TLT9255WLCXUMA1 CAD Model

Description

The TLT9255WLCXUMA1 is a transceiver integrated circuit (IC) from Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Operating Temperature: -40°C to 150°C
  • Series: Automotive, AEC-Q100
  • Package: 14-TDFN Exposed Pad
  • Mounting Type: Surface Mount
  • Voltage Supply: 4.75V to 5.25V
  • Data Rate: 5Mbps
  • Protocol: CANbus
  • Drivers/Receivers: 1 Driver, 1 Receiver
  • Duplex: Half-Duplex
  • Receiver Hysteresis: 30mV
